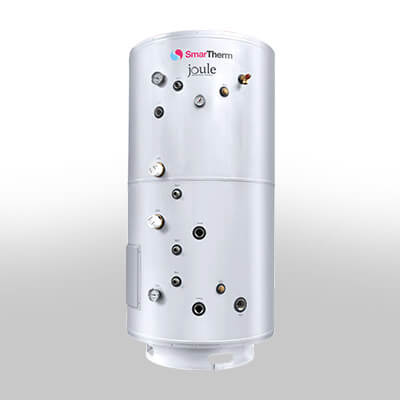

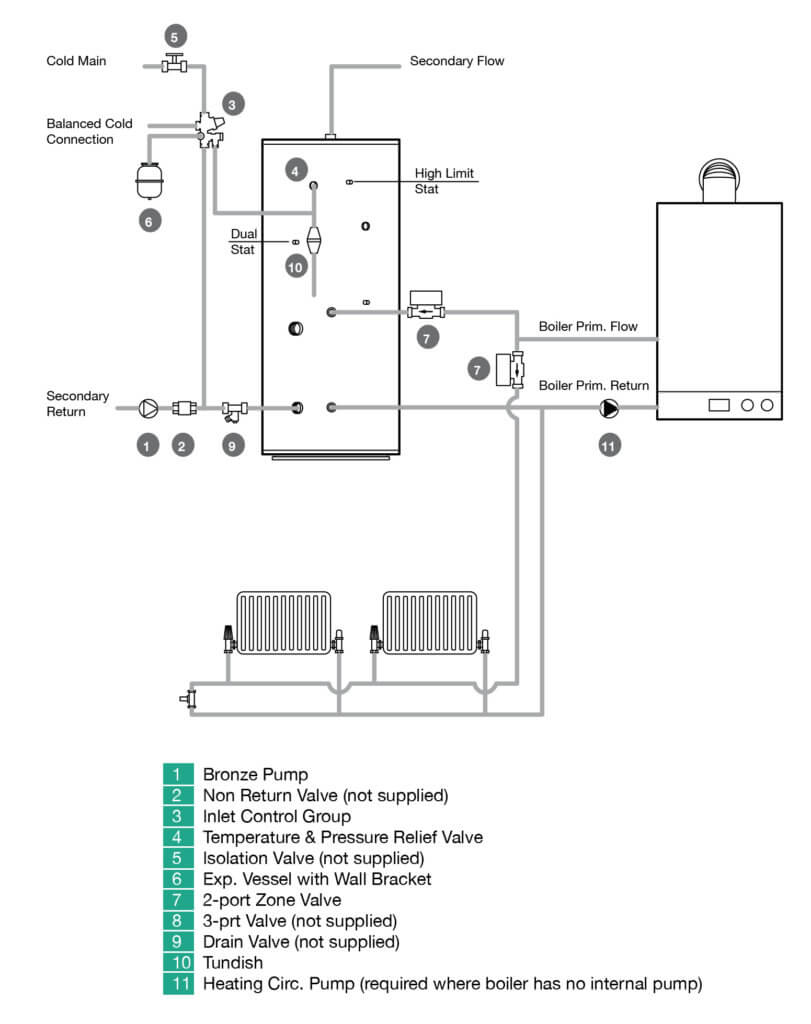

Item Code; | |||||||
6bar. | TCGMVI- 0300NFC | TCGMVI- 0400LFC | TCGMVI- 0500LFC | TCGMVI- 0800LFC | TCGMVI- 1000LFC | TCGMVI- 1250LFC | TCGMVI- 1500LFC |
Indirect | 300 | 400 | 500 | 800 | 1000 | 1250 | 1500 |
Titanium Imm. – Fact. Fitted As Std. | 2 x 3kW | 2 x 3kW | 2 x 3kW | 2 x 3kW | 2 x 3kW | 2 x 3kW | 2 x 3kW |
Coil Surface Area (m2) | 1.54 | 1.97 | 1.97 | 2.86 | 2.86 | 4.73 | 4.73 |
Coil Diameter (mm) | 32 | 32 | 32 | 38 | 38 | 38 | 38 |
Coil Rating @60L/min 80ºC (kW) | 49 | 57 | 57 | 73 | 73 | 98 | 98 |
Coil – Maximum Pressure (bar) | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Inspection Flange | Optional – for inspection only – CANNOT be used with flanged immersion heaters |
All Cylinders – 3 & 6 bar | 300 | 400 | 500 | 800 | 1000 | 1250 | 1500 |
Diameter (mm) | 620 | 710 | 710 | 920 | 1100 | 1150 | 1150 |
Height (mm) | 1670 | 1670 | 2030 | 2050 | 2170 | 2200 | 2400 |
Hot And Cold Connections BSP F | 1.5” | 1.5” | 1.5” | 2.0” | 2.0” | 2.0” | 2.0” |
Coil Conn. (+for the solar coil) BSP F | 1.5” | 1.5” | 1.5” | 1.5” | 1.5” | 1.5” | 1.5” |
Secondary Return BSP F | 1.25” | 1.25” | 1.25” | 1.25” | 1.25” | 1.5” | 1.5” |
Max. Op. Pressure – 3/6 bar kit (bar) | 6 / 10 | 6 / 10 | 6 / 10 | 6 / 10 | 6 / 10 | 6 / 10 | 6 / 10 |
T&P Setting 3/6 bar kit (bar) | 7 / 10 | 7 / 10 | 7 / 10 | 7 / 10 | 7 / 10 | 7 / 10 | 7 / 10 |
T&P Size – Multi Energy / Indirect+Solar | 1.0” / 0.75” | 1.0” / 0.75” | 1.0” / 0.75” | 1.0” / 0.75” | 1.25” / 0.75” | 1.25” / 1.25” | 1.25” / 1.25” |
Cold W. Safety Devices – PRV, ERV, Chk Vlv | 1.0” (one piece) | 1.25” (multi-piece) | 1.5” (multi-piece) | ||||
Exp. Relief Valve Setting – 3/6 bar kit (bar) | 6 / 8 | 6 / 8 | 6 / 8 | 6 / 8 | 6 / 8 | 6 / 8 | 6 / 8 |
2-port Mot. Valve (Indirect & Solar Only) | 28mm | 28mm | 28mm | 28mm | 1.25” | 1.5” | 1.5” |
2-port Mot. Valve Conn. (Ind & Sol Only) | Compression nut and olive | Pipe union conn. nut and tail piece | |||||
Expansion Vessel Size – 3/6 bar kit (ltr) | 24 / 35 | 35 / 50 | 50 / 80 | 80 / 100 | 100 / 150 | 150 / 200 | 150 / 200 |
Tundish | 1.25” | 1.25” | 1.25” | 1.25” | 1.5” | 1.5” | 1.5” |
ErP Energy Efficiency Class | C | C | C | C | C | C | C |
Standing Loss (W) | 92 | 102 | 115 | 121 | 124 | 135 | 160 |
Performance | 300 | 400 | 500 | 800 | 1000 | 1250 | 1500 |
Inspection Flange | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
Heat Up Time ΔT 50°C (min)* | 23 | 26 | 30 | 48 | 62 | 64 | 74 |
Hot Water Capacity (ltr) | 283 | 379 | 485 | 747 | 1079 | 1201 | 1350 |
1º Re-Heat time (70% draw off) 60L/min | 17 | 20 | 27 | 31 | 39 | 40 | 51 |
2º Re-Heat time (70% draw off) 30L/min | 24 | 28 | 37 | 48 | 57 | 61 | 73 |
3º Re-Heat time (70% draw off) 15L/min | 36 | 41 | 54 | 78 | 88 | 110 | 131 |
Weight Empty (kg) | 82 | 87 | 104 | 220 | 230 | 235 | 267 |
Weight Full (kg) | 365 | 466 | 589 | 967 | 1309 | 1436 | 1617 |
Prim. Coil Surf. Area (m2) | 1.54 | 1.97 | 1.97 | 2.86 | 2.86 | 4.73 | 4.73 |
Prim. Coil Rating @ 60L/min (kW) | 49 | 57 | 57 | 73 | 73 | 98 | 98 |
Prim. Coil Rating @ 30L/min (kW) | 35.6 | 42 | 42 | 50 | 50 | 66 | 66 |
Prim. Coil Rating @ 15L/min (kW) | 23 | 29 | 29 | 31 | 31 | 35.12 | 35.12 |
Prim. Coil Press. Drop @ 15L/min (mbar) | 21 | 29 | 29 | 18 | 18 | 16 | 16 |
Prim. Coil Press. Drop @ 30L/min (mbar) | 32 | 38 | 38 | 75 | 75 | 55 | 55 |
Prim. Coil Press. Drop @ 60L/min (mbar) | 290 | 310 | 310 | 430 | 430 | 240 | 240 |
Cont. Output @ 60ºC ΔT 50°C (L/hr) | 685 | 765 | 765 | 829 | 829 | 1015 | 1015 |
Prim. Coil – Max Operating Press. (bar) | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
