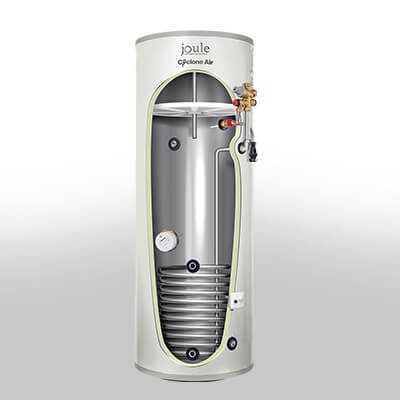

Cyclone Air Indirect

Features & Benefits

The Cyclone Air Unvented range of cylinders are manufactured with quality and precision to the fore. The internal expansion provides a neat installation. The pre-plumbed cold feed assembly ensure consistency and quality every time. The Cyclone Air brand signifies the next generation of hot water cylinder development.

Categories: Unvented Cylinders

General
ITEM NO CAP. WEIGHT EMPTY WEIGHT FULL WATER VOL. ERP RATING REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS SOUND POWER LEVEL  PRIMARY COIL RATING
Litre KG KG L   MINS W kWh/24h dB KW
TCEMVA-0100LFB 100 32 131 95 B 17 44 1.056 20
TCEMVA-0120LFB 120 25 158 112 B 22 52 1.248 20
TCEMVA-0150LFB 150 29 187 139 B 26 55 1.32 20
TCEMVA-0180LFB 180 43 210 159 B 30 58 1.392 20
TCEMVA-0210LFC 210 46 243 188 C 34 81 1.944 21
TCEMVA-0250LFC 250 56 302 236 C 39 89 2.136 23
TCEMVA-0300LFC 300 65 361 279 C 46 103 2.472 23
