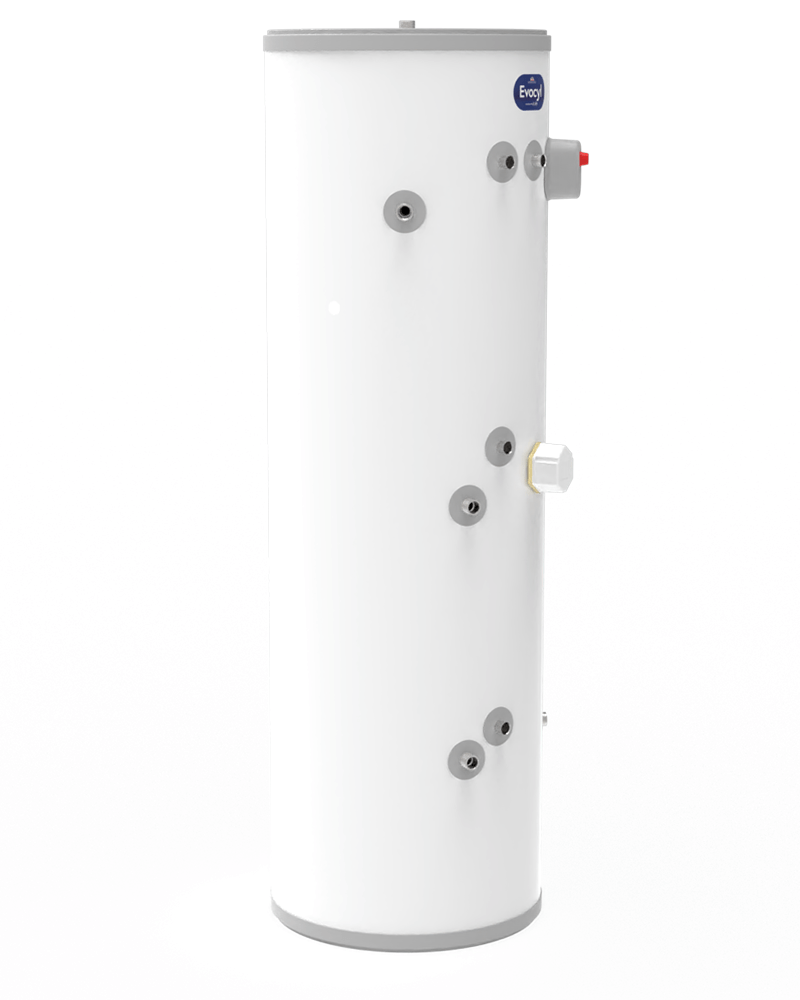

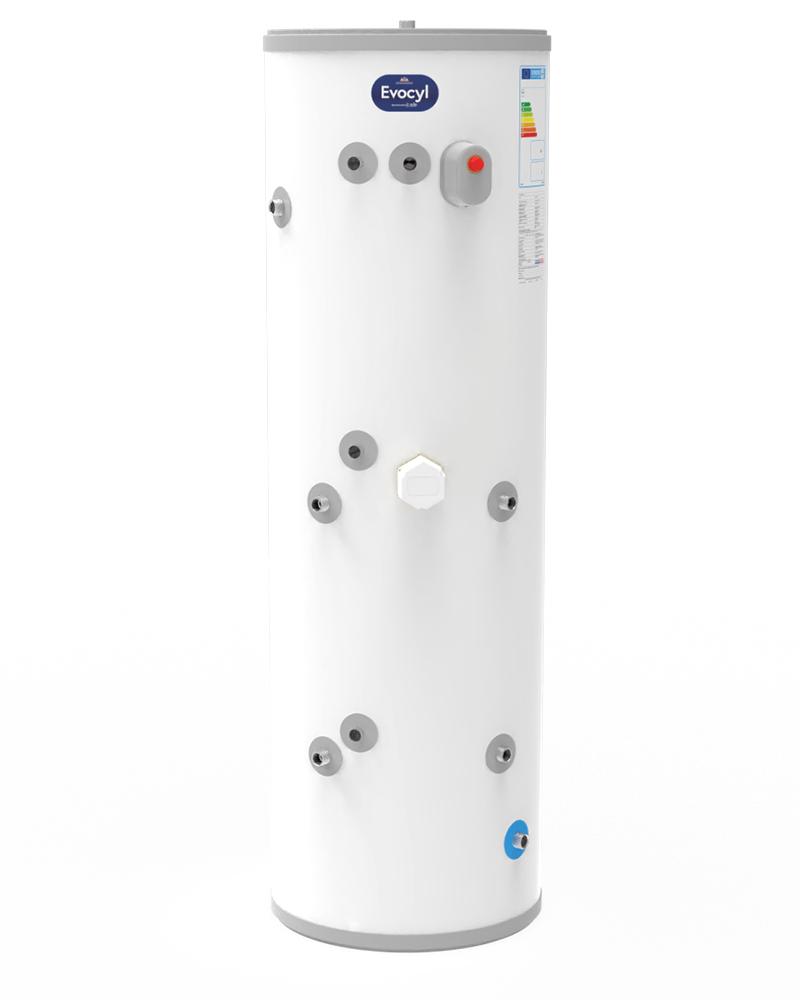

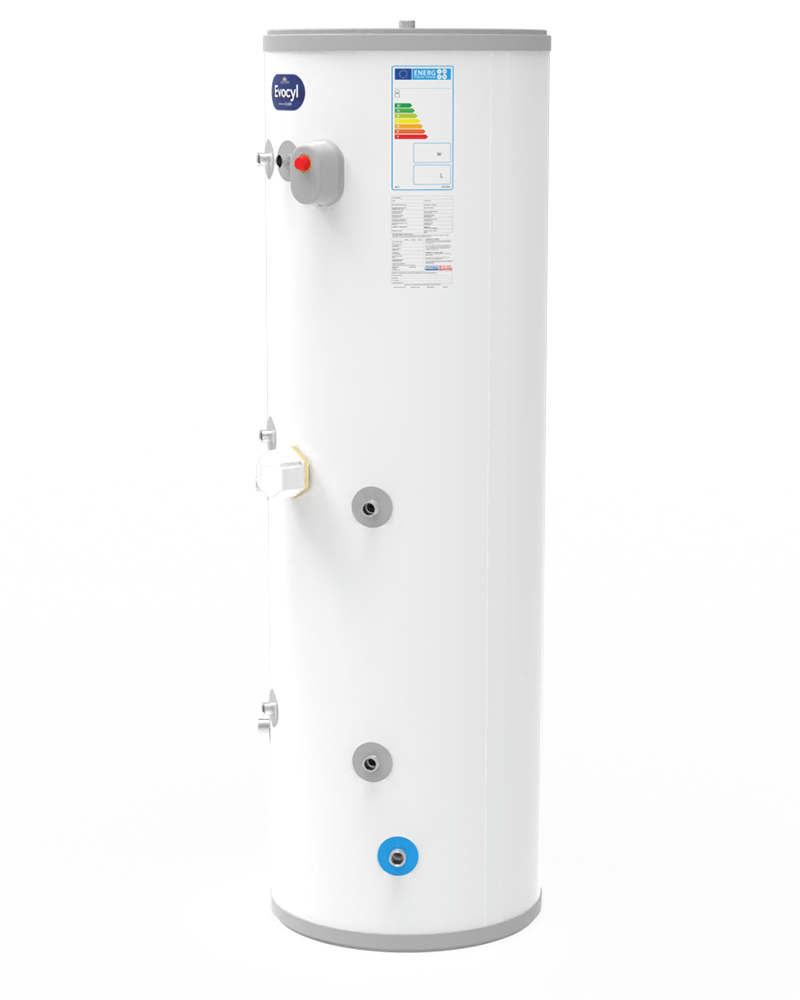

Therma Q Evocyl Twin Solar

Features & Benefits

ThermaQ Evocyl range of unvented hot water cylinder is designed to work with any solar system on the market. Therma q have manufactured to the highest standards and supplied with innovative components to ensure quick recovery, low heat loss, and economic use of energy. The Therma Q unvented cylinder is insulated with 50mm 100% CFC and HCFC free polyurethane to minimise heat loss and heated by boiler and supports Thermal and PV solar.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Factory pre built Gas or Oil Boiler Ready

Categories: Unvented Cylinders

General
NO2 CODE ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOLUME ERP ENERGY RATING REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS PRIMARY COIL RATING SOLAR COIL SURFACE AREA SOLAR COIL RATING
LITRES KG KG L MINS kWh/24h W KW M2 KW
TQSIN0150 TTEMVS-0150LFB 150 40 182 150 B 16.05 1.26 53 16.33 0.656 17.49
TQSIN0180 TTEMVS-0180LFB 180 45 216 180 B 19.5 1.4 58 15.9 0.656 18.85
TQSIN0210 TTEMVS-0210LFC 210 48 250 210 C 23.7 1.48 62 18.15 0.656 17.18
TQSIN0250 TTEMVS-0250LFC 250 53 294 250 C 26.33 1.76 73 17.8 0.76 19
TQSIN0300 TTEMVS-0300LFC 300 63 353 300 C 29.3 2.03 85 19.35 0.878 20.87
