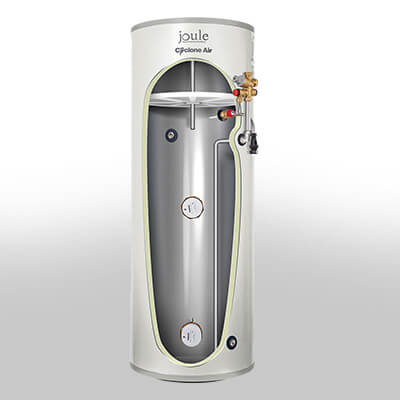

Cyclone Air Direct

Features & Benefits

The Cyclone Air Unvented range of cylinders are manufactured with quality and precision to the fore. The internal expansion provides a neat installation. The pre-plumbed cold feed assembly ensure consistency and quality every time. The Cyclone Air brand signifies the next generation of hot water cylinder development.

Categories: Unvented Cylinders

General

ITEM NO	CAPACITY	WEIGHT EMPTY	WEIGHT FULL	LOAD PROFILE	WATER VOLUME	ERP ENERGY RATING	ENERGY EFFICIENCY	STANDING LOSS	STANDING LOSS	ANNUAL ENERGY USAGE
	LITRE	KG	KG		L		nwh%	khw/24h	W	kWh/24h
TCEMVB-0100LFB	100	36	135	L	99	C	39	1.056	44	2650
TCEMVB-0120LFB	120	30	155	L	112	C	39	1.248	52	2654
TCEMVB-0150LFB	150	34	184	L	139	C	39	1.32	55	2715
TCEMVB-0180LFB	180	37	207	L	159	C	38	1.392	58	2719
TCEMVB-0210LFC	210	41	241	L	188	C	38	1.944	81	2723
TCEMVB-0250LFC	250	49	299	L	236	C	37	2.136	89	2764
TCEMVB-0300LFC	300	55	355	XL	279	D	37	2.472	103	4508

Videos

Downloads

DIMS

ITEM NO	HEIGHT	DIAMETER	COLD WATER INLET	T&P RELIEF VALVE	SECONDARY RETURN	IMMERSION HEATER TOP
(mm)	A	B	C	G	K	J
TCEMVB-0100LFB	950	540		640	580
TCEMVB-0120LFB	1005	540		640	580
TCEMVB-0150LFB	1196	540		780	655
TCEMVB-0180LFB	1285	540		880	735
TCEMVB-0210LFC	1530	540		1020	830
TCEMVB-0250LFC	1785	540		1315	1080
TCEMVB-0300LFC	2060	540		1530	1255

Electrical

Fitting The Immersion Heater

Always check the immersion for signs of leakage before wiring commences.
The immersion heater must be completely submerged in water with a minimum of 200mm of water
above the top of the immersion.

Wire the immersion through a double pole fused spur. The contact separation must be no less than
3mm with a minimum breaking capacity of 16A.

KIT CONTENTS

Item Code;	Description
TZG-3.0-RO.75I	Inlet Control Group
TZ9-4.0-000.50	Temperature and Pressure Valve 1/2″
TZ9-4.0-000.75	Temperature and Pressure Valve 3/4″
TZ9-7.0-001.00	Temperature and Pressure Valve 1″
TZU-000015X22	22mm Plastic Tundish
