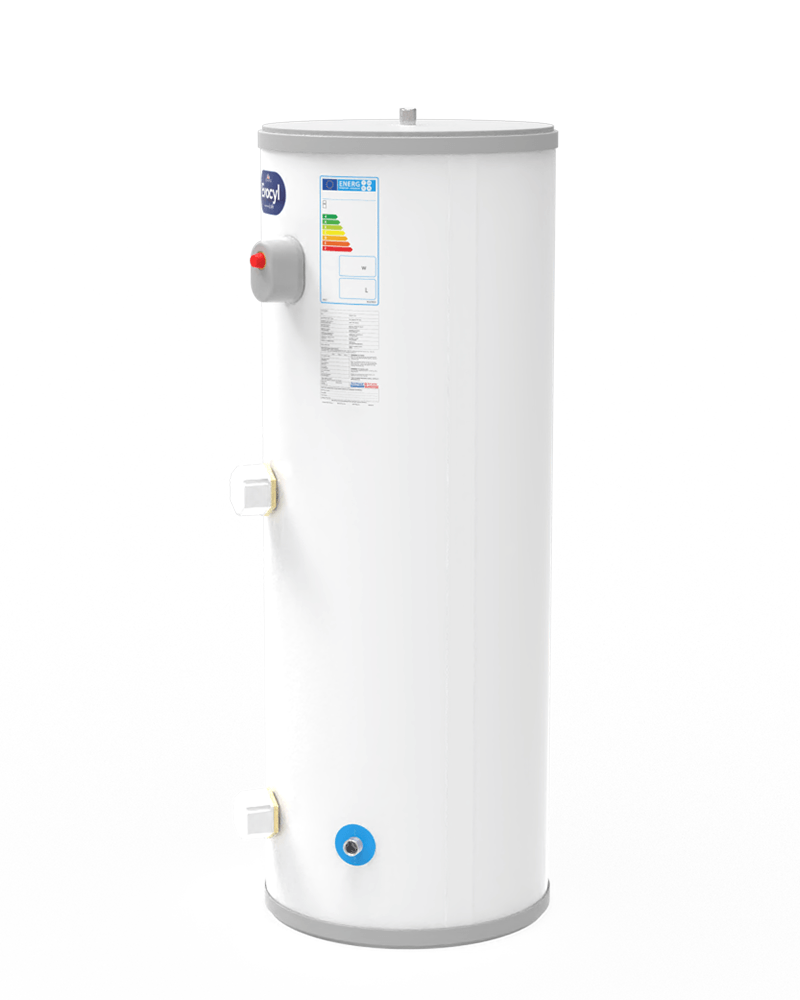

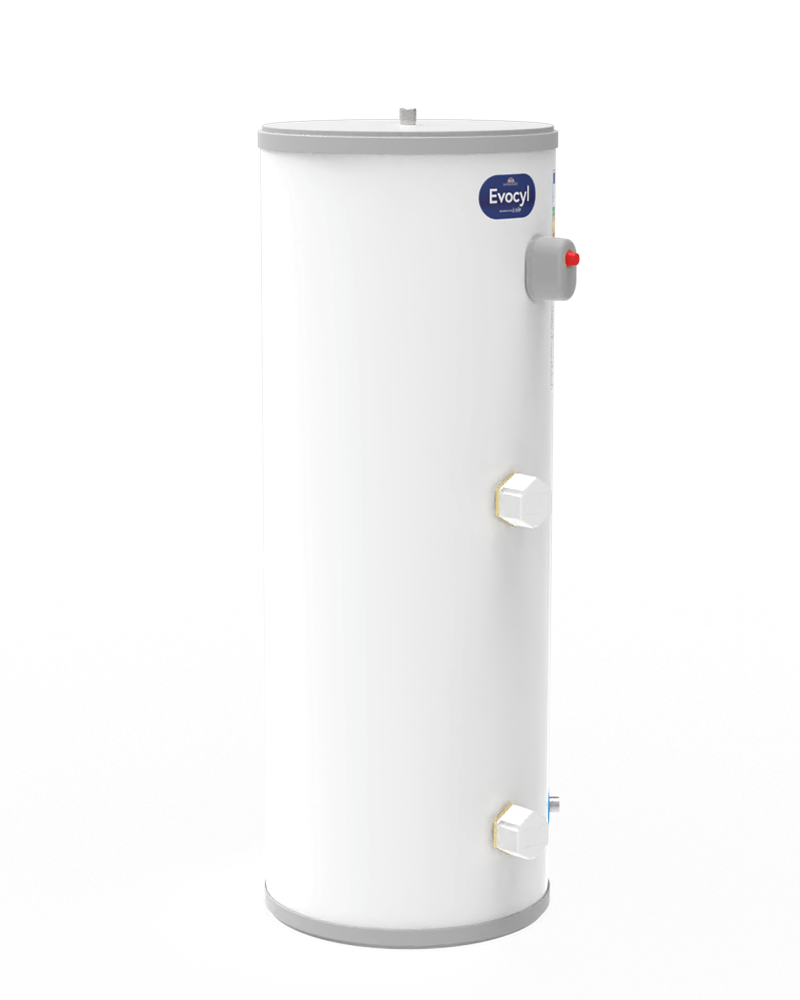

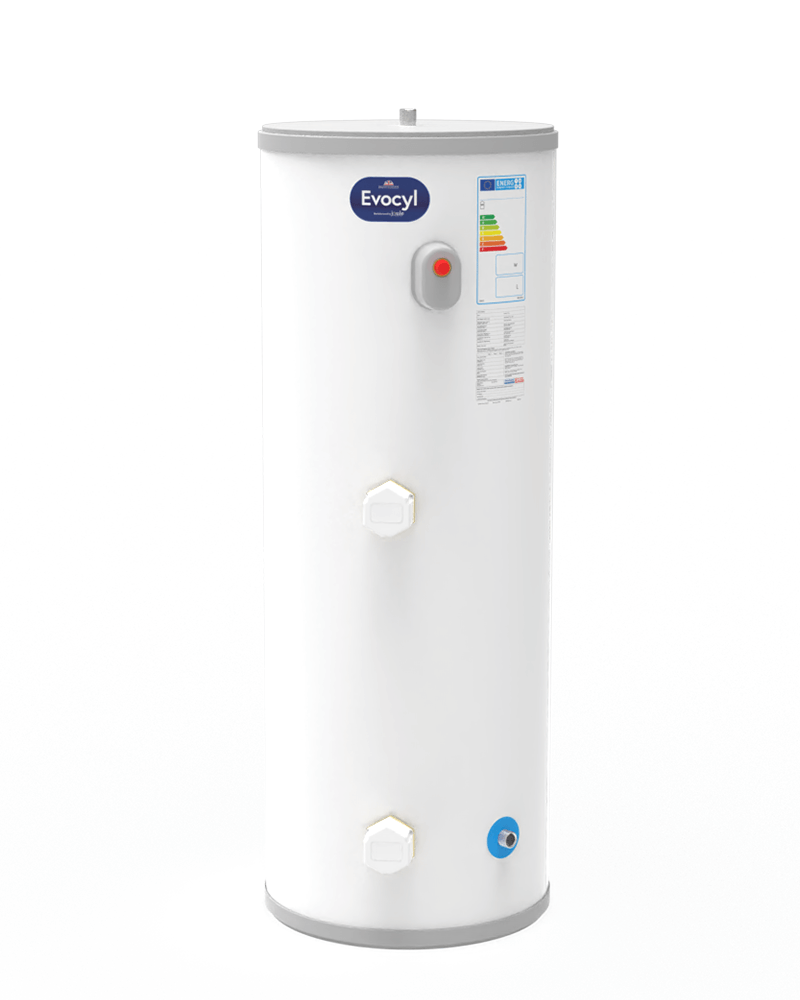

Themra Q Evocyl Direct

Features & Benefits

ThermaQ Evocyl cylinders is built using high-grade Duplex stainless steel and designed to provide fast flowing hot water to single or multiple outlets. Manufactured to the highest standards and supplied with innovative components to ensure quick recovery, low heat loss, and economic use of energy. Made from Duplex Stainless Steel. The Therma Q cylinder is insulated with 50mm 100% CFC and HCFC free polyurethane to minimise heat loss.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Heated electrically with two factory fitted immersions

Categories: Unvented Cylinders

General
NO2 CODE ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL LOAD PROFILE WATER VOLUME ERP ENERGY RATING ENERGY EFFICIENCY  STANDING LOSS STANDING LOSS ANNUAL ENERGY USAGE
LITRE KG KG   L   nwh% MINS W kWh/24h
TQDIR0090 TTEMVD-0090LFB 90 21 111 M 90 C 35 0.96 40 1485
TQDIR0120 TTEMVD-0120LFB 120 26 146 M 120 C 34 1.11 46 1515
TQDIR0150 TTEMVD-0150LFB 150 33 183 L 150 C 33 1.26 53 1547
TQDIR0180 TTEMVD-0180LFB 180 38 218 L 180 C 36 1.40 58 2852
TQDIR0210 TTEMVD-0210LFC 210 41 251 L 210 C 36 1.48 62 2862
TQDIR0250 TTEMVD-0250LFC 250 46 296 XL 250 C 35 1.76 73 2920
TQDIR0300 TTEMVD-0300LFC 300 55 355 XL 300 C 35 2.03 85 2920
