In roof 2m Solar Thermal System

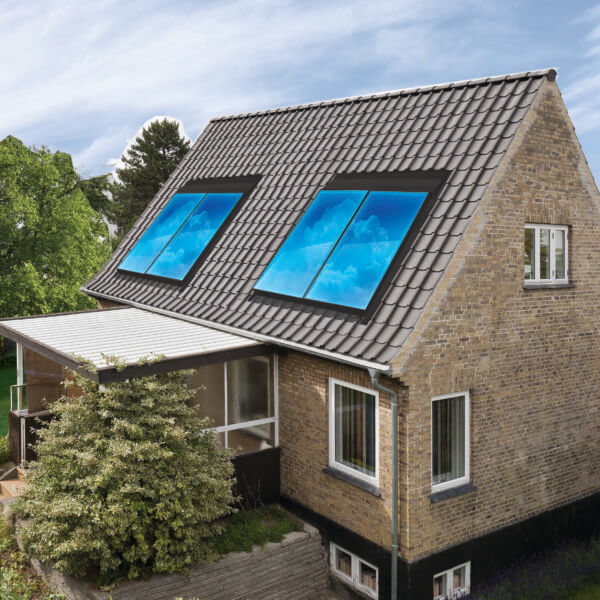

The sleek Joule In-Roof solar system is designed and manufactured to work in Northern European climates. The collector’s black finish makes it an attractive addition to any roof.

The Joule In-Roof solar systems have been tested up to four times the requirements of EN12975: 1-2. The high efficiency collectors are further tested to determine their maximum impact force resistance levels and the maximum positive and negative loading force that the collectors can resist.

Standard Kit Components

2m In Roof Solar List

2m UK Pack Contents 2m IE Pack Contents
Item Code Description 1

Panel

2

Panel

3

Panel

1

Panel

2

Panel

3

Panel

SW-OR-0000002V

On Roof Panel Vert 2m

1

2

3

1

2

3

SKN-C-00000ERP

Solar Controller

1

1

1

1

1

1

SVE-0000000024

Expansion Vessel 24Ltr

1

1

1

1

1

1

SVS-0000000000

Expansion Vessel Connect

1

1

1

SZ-L-0D-0ERP-5

Solar Pump Station

1

1

1

1

1

1

SKU-0000000020

20L Pre-Mixed Solar Fluid

1

1

1

1

1

2

SF-IS-000000N1

2m Navitas 1 Pan Flash Slate / Tile

1

1

SF-IS-000000N2

2m Navitas 2 Pan Flash Slate / Tile

1

1

SF-ISE-000000N

Navitas Slate / Tile Ext Flashing

1

1

1

1

SVB-000000000P

Solar Discharge- Plastic

1

1

1

OZM-0000.75NRV

Thermo Mixing Valve 3/4” NRV

1

1

1

OZM-00000.75HP*

Thermo Mixing Valve 3/4” HP *

1

1

1

SZF-3/4-3/4-MF

Sol elbow 3/4” x 3/4” Flat Face

2

2

2

2

2

2

SZF-3/4-3/4-SM

Solar Fitting 3/4” x 3/4” nip DN16 FF

1

1

1

1

1

1

Appearance

The panel comes in a stylish, low-profile all-black finish and a profiled aluminum frame. As well as giving you the option of having the panels sitting flush in-roof with tiles or simply installed on-roof on a mounting frame.

Heat Pump Integration

By integrating solar thermal into the design of a heat pump, it is possible to offset 60% of your hot water demand per year, therefore heavily reducing the running costs of your heat pump and subsequently, the lifespan. To find out more about heat pumps, continue reading by clicking here.

Standard Kit - Solar Pipe

UK PACK COMP IE PACK COMP
Code Description 1 2 3 1 2 3

DN16 Solar Tail Pack Standard System

SKT-00000000

DN16 Solar SS Insulated Tail 0.75m

1 1 1

10m DN16 Solar Pipe Pack Standard System

SPD-16-10-0000

DN16 10m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

15m DN16 Solar Pipe Pack Standard System

SPD-16-15-0000

DN16 15m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1

25m DN16 Solar Pipe Pack Standard System

SPD-16-25-0000

DN16 25m sol SS pipe duo ins

1 1 1 1 1 1

SZ-J-0000DN-16

solar fitting joiner pack DN16

1 1 1 1 1 1
Setting Out The Roof

Code Dimensions
A 300mm
B 300mm
C 2000mm
D 1680mm
E 2420mm
F 3380mm

Connecting Solar Pipe To The Panels

If you choose to use solar pipe either in full lengths or as tails the connections must be made to the panels prior to fitting the flashing kit.

The panels are terminated in 3/4” BSP flat face male nipple as supplied as part of the kit. Following the diagram below single fitting should be tightened to the flat face of the elbow connected to the panel.
