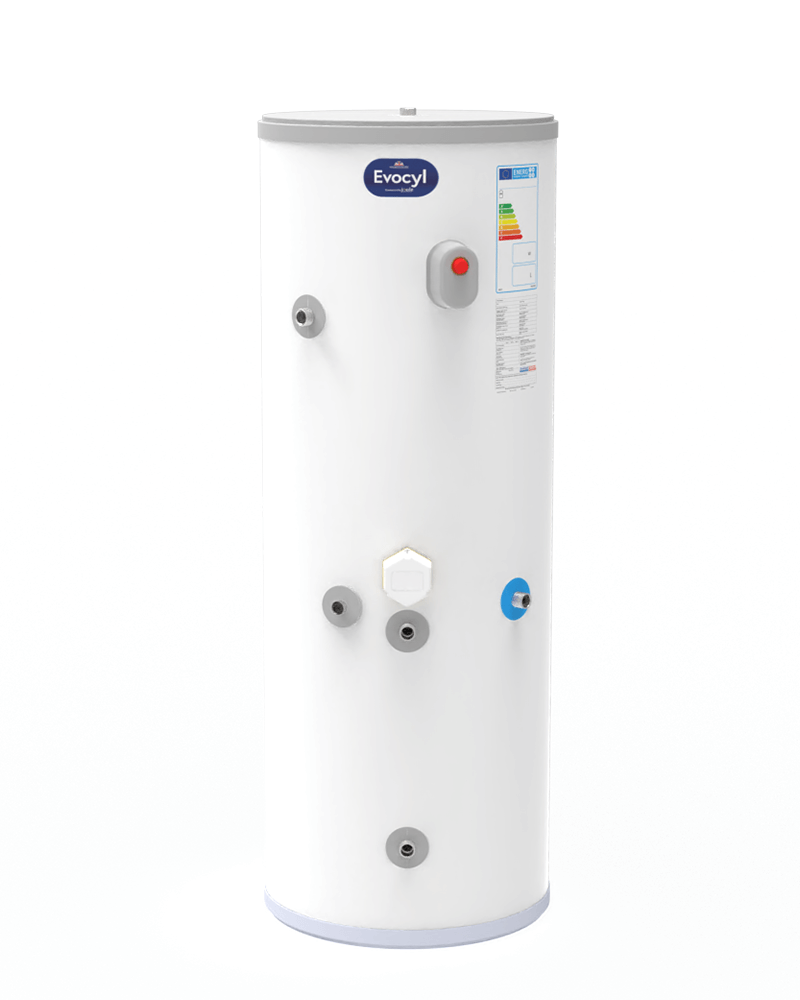

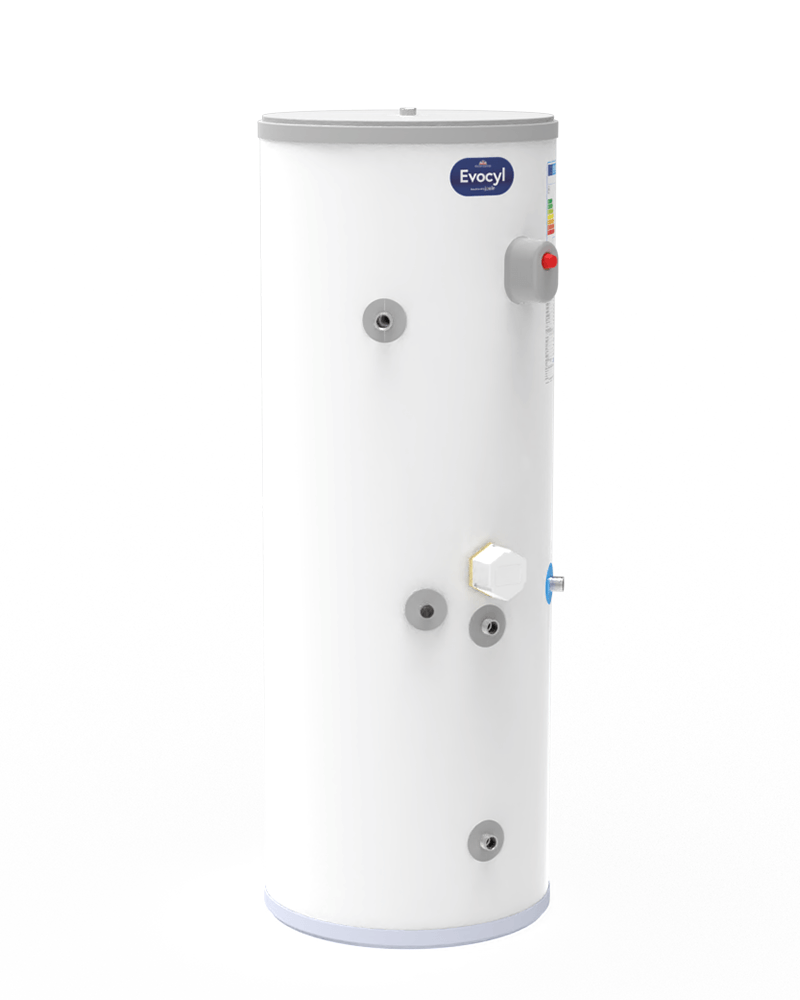

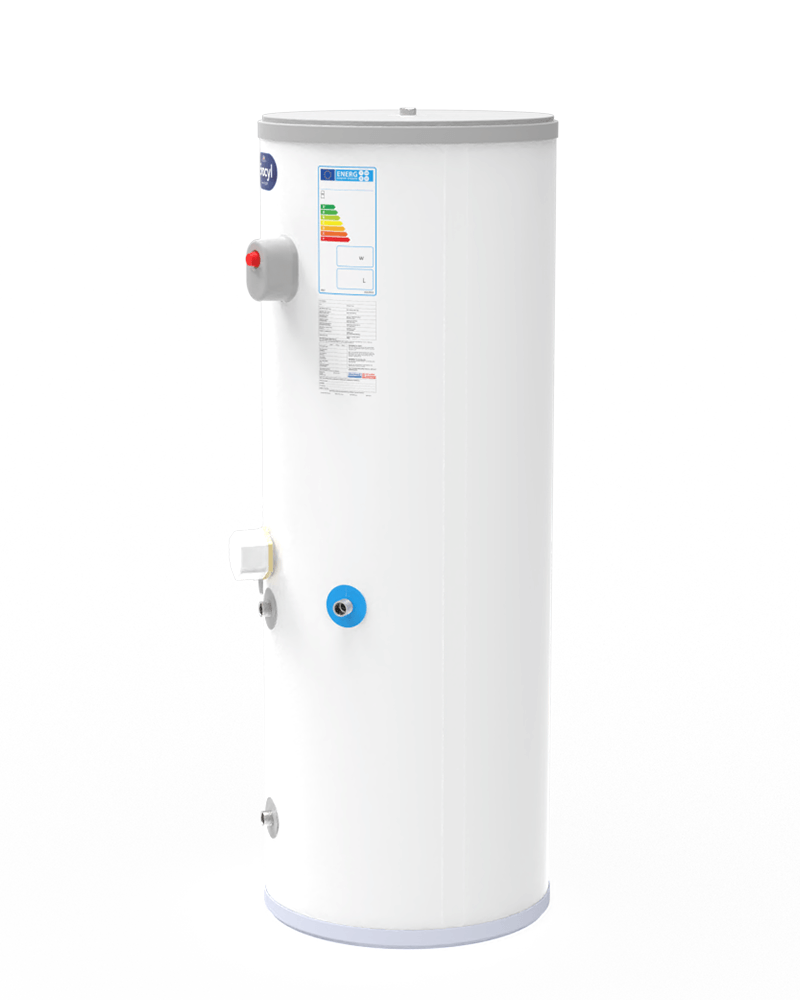

Therma Q Evocyl Slimline Indirect

Features & Benefits

ThermaQ Evocyl indirect unvented hot water cylinder is built using high-grade Duplex stainless steel and designed with a smaller diameter for small floor footprints. The ThermaQ cylinder is manufactured to the highest standards and supplied with innovative components such as our ThermaQ thermostat. Evocyl cylinder has quick recovery, low heat loss, and economic use of energy.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Factory pre built Gas or Oil Boiler Ready

Categories: Unvented Cylinders

General
NO2 CODE ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOLUME ERP ENERGY RATING REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS PRIMARY COIL RATING
LITRES KG KG L   MINS kWh/24h W KW
TQNIN0060 TTEMVI-0060SFB 60 21 81 60 B 13.4 0.92 38 16.4
TQNIN0090 TTEMVI-0090SFB 90 23 113 90 B 14.3 1.03 43 15.73
TQNIN0120 TTEMVI-0120SFB 120 30 150 120 B 19.05 1.24 52 15.63
TQNIN0150 TTEMVI-0150SFB 150 38 188 150 C 23.71 1.44 60 16.33
TQNIN0180 TTEMVI-0180SFB 180 42 222 180 C 29.02 1.53 64 15.9
TQNIN0210 TTEMVI-0210SFC 210 42 255 210 C 32.05 1.62 68 18.15
