SmarTherm Solar

Features & Benefits

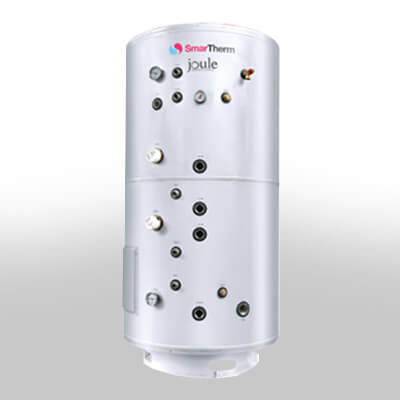

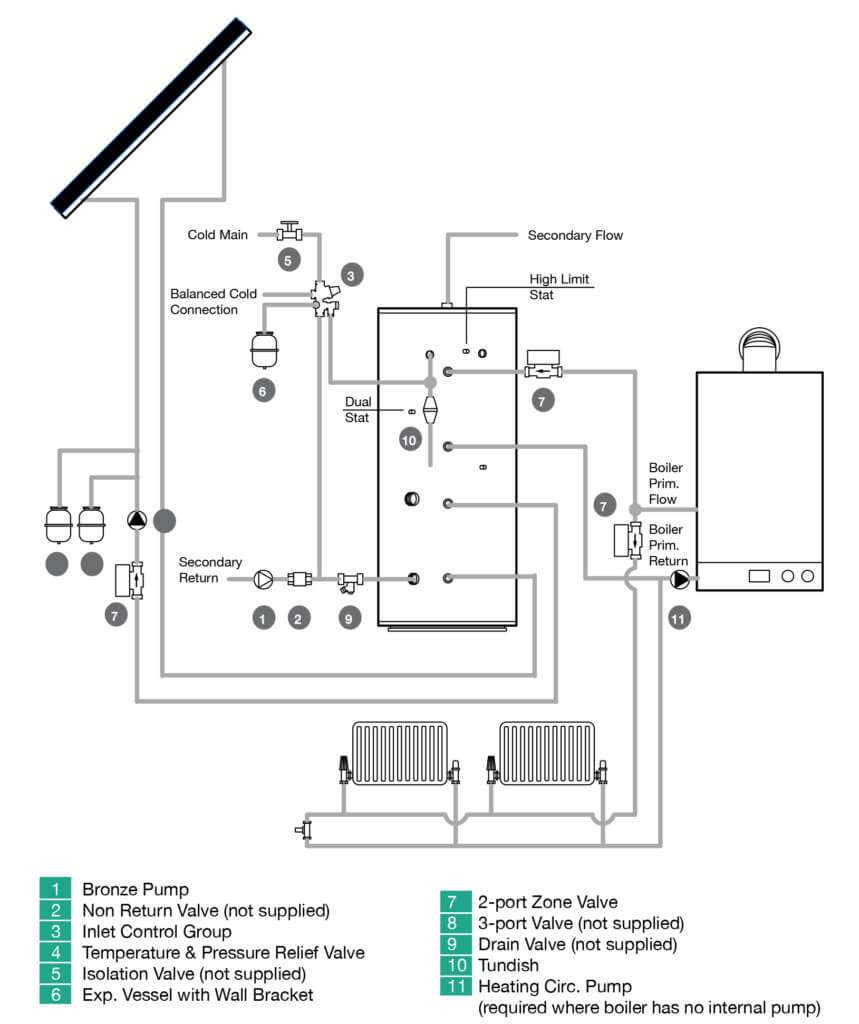

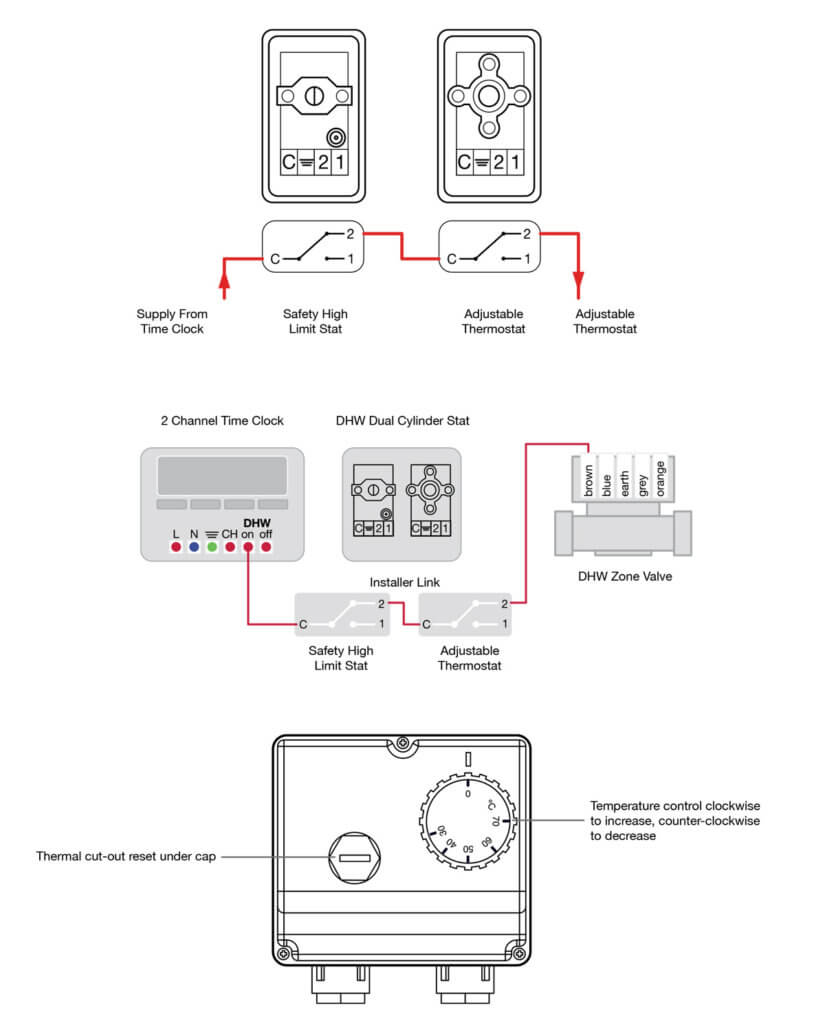

The Joule Smartherm Twin Solar unvented cylinder is an ideal solution for big domestic or commercial solar applications. The units is designed and manufactured with all connections and gauges to allow control and a clean and professional installation.

Categories: SmarTherm

General
  Item Code;
3bar. TCFMVS- 0300NFC TCFMVS- 0400LFC TCFMVS- 0500LFC TCFMVS- 0800LFC TCFMVS- -1000LFC TCFMVS- 1250LFC TCFMVS- 1500LFC
6bar. TCGMVS- 0300NFC TCGMVS- 0400LFC TCGMVS- 0500LFC TCGMVS- 0800LFC TCGMVS- 1000LFC TCGMVS- 1250LFC TCGMVS- 1500LFC
Solar 300 400 500 800 1000 1250 1500

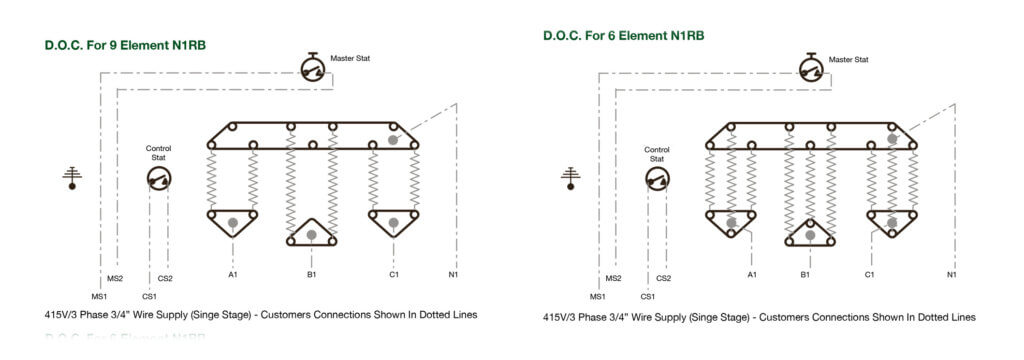

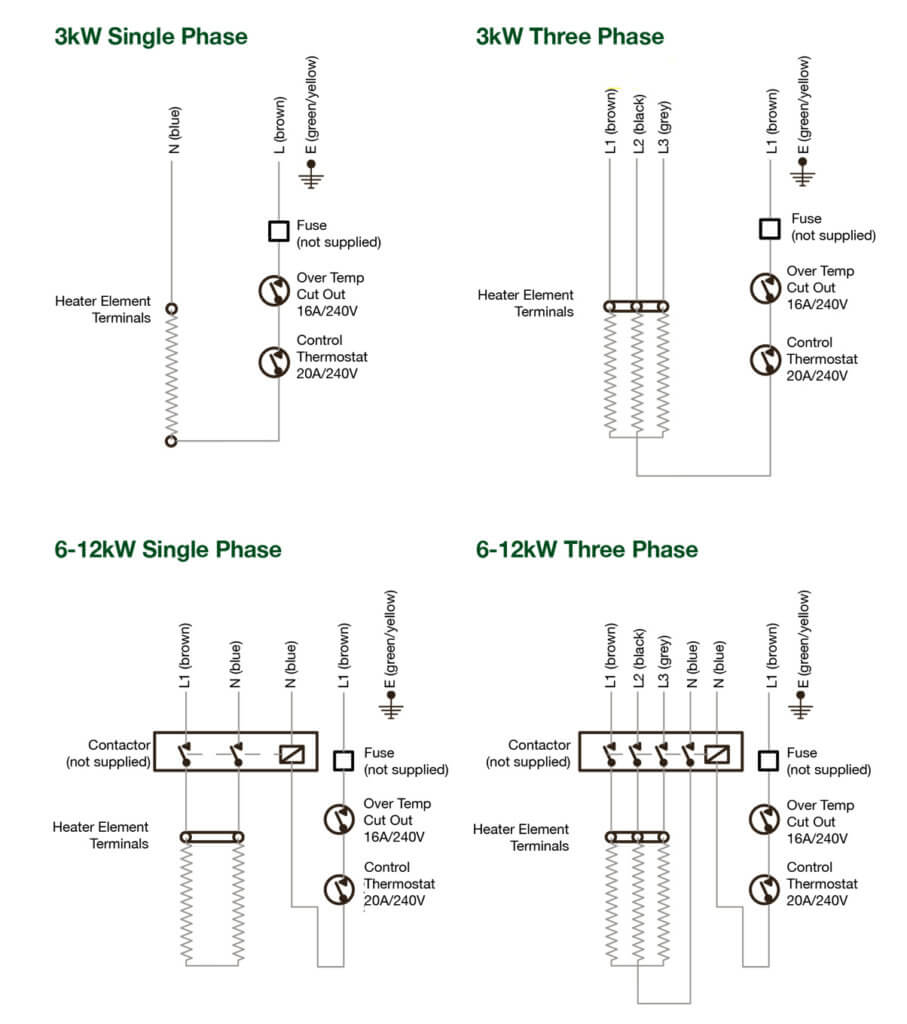

Titanium Imm. – Fact. Fitted As Std. 2 x 3kW 2 x 3kW 2 x 3kW 2 x 3kW 2 x 3kW 2 x 3kW 2 x 3kW
Primary Coul Surface Area (m2) 1.21 1.21 1.21 2.86 2.86 4 4
Prim. Coil Rating @ 60L/m 80ºC (kW) 46 46 46 73 73 95 95
Coils (Prim & Solar) – Max. Pressure (bar) 6 6 6 6 6 6 6
Dedicated Solar Volume (ltr) 113.1 153.3 197.9 307.9 460.8 499.0 483.0
Solar Coil Surface Area (m2) 1.1 1.1 1.1 2.0 2.0 2.5 2.5
Coil Diameter (Both Coils) 32 32 32 38 38 38 38
Solar Coil Rating @ 60L/m (kW) 43 43 43 57 57 68 68
Inspection Flange Optional – for inspection only – CANNOT be used with flanged immersion heaters



Performance 300 400 500 800 1000 1250 1500
Hot Water Capacity (ltr) 278.5 377 483 732 1063 1185 1350
Heat Up Time (ΔT 50°C) 35 46 58 71 89 96 115
1º Re-Heat time (70% draw off) 60L/min 11 15 21 28 34 38 41
1º Re-Heat time (70% draw off) 30L/min 16 21 29 40 48 52 54
1º Re-Heat time (70% draw off) 15L/min 24 38 47 71 81 90 104
Weight Empty (kg) 88 89 105.5 240 250 268 293
Weight Full (kg) 366.5 466 588 972 1313 1453 1643
Prim. Coil Surf. Area (m2) 1.21 1.21 1.21 2.86 2.86 4.00 4.00
Prim. Coil Rating @ 60L/min (kW) 46 46 46 73 73 95 95
Prim. Coil Rating @ 30L/min (kW) 36.72 36.72 36.72 50 50 54.67 54.67
Prim. Coil Rating @ 15L/min (kW) 21 21 21 31 31 34 34
Prim. Coil Press. Drop @ 15L/min (mbar) 19 19 19 16 16 26 26
Prim. Coil Press. Drop @ 30L/min (mbar) 29 29 29 65 65 75 75
Prim. Coil Press. Drop @ 60L/min (mbar) 245 245 245 335 335 350 350
Dedicated Solar Volume (ltr) 113.1 153.3 197.9 307.9 460.8 499 483
Solar Coil Surface Area (m2) 1.1 1.1 1.1 2 2 2.5 2.5
Solar Coil Rating @ 60L/min (kW) 43 43 43 57 57 68 68
Cont. Output @ 60ºC ΔT 50°C (L/hr) 453 453 453 1110 1110 1282 1282



All Cylinders – 3 & 6 bar 300 400 500 800 1000 1250 1500
Diameter (mm) 620 710 710 920 1100 1150 1150
Height (mm) 1670 1670 2030 2050 2170 2200 2400
Hot And Cold Connections BSP F 1.5” 1.5” 1.5” 2.0” 2.0” 2.0” 2.0”
Coil Conn. (+for the solar coil) BSP F 1.5” 1.5” 1.5” 1.5” 1.5” 1.5” 1.5”
Secondary Return BSP F 1.25” 1.25” 1.25” 1.25” 1.25” 1.5” 1.5”
Max. Op. Pressure – 3/6 bar kit (bar) 6 / 10 6 / 10 6 / 10 6 / 10 6 / 10 6 / 10 6 / 10
T&P Setting 3/6 bar kit (bar) 7 / 10 7 / 10 7 / 10 7 / 10 7 / 10 7 / 10 7 / 10
T&P Size – Multi Energy / Indirect+Solar 1.0” / 0.75” 1.0” / 0.75” 1.0” / 0.75” 1.0” / 0.75” 1.25” / 0.75” 1.25” / 1.25” 1.25” / 1.25”
Cold W. Safety Devices – PRV, ERV, Chk Vlv 1.0” (one piece) 1.25” (multi-piece) 1.5” (multi-piece)
Exp. Relief Valve Setting – 3/6 bar kit (bar) 6 / 8 6 / 8 6 / 8 6 / 8 6 / 8 6 / 8 6 / 8
2-port Mot. Valve (Indirect & Solar Only) 28mm 28mm 28mm 28mm 1.25” 1.5” 1.5”
2-port Mot. Valve Conn. (Ind & Sol Only) Compression nut and olive Pipe union conn. nut and tail piece
Expansion Vessel Size – 3/6 bar kit (ltr) 24 / 35 35 / 50 50 / 80 80 / 100 100 / 150 150 / 200 150 / 200
Tundish 1.25” 1.25” 1.25” 1.25” 1.5” 1.5” 1.5”
ErP Energy Efficiency Class C C C C C C C
Standing Loss (W) 92 102 115 121 124 135 160
