Manifolds and Mixing Set

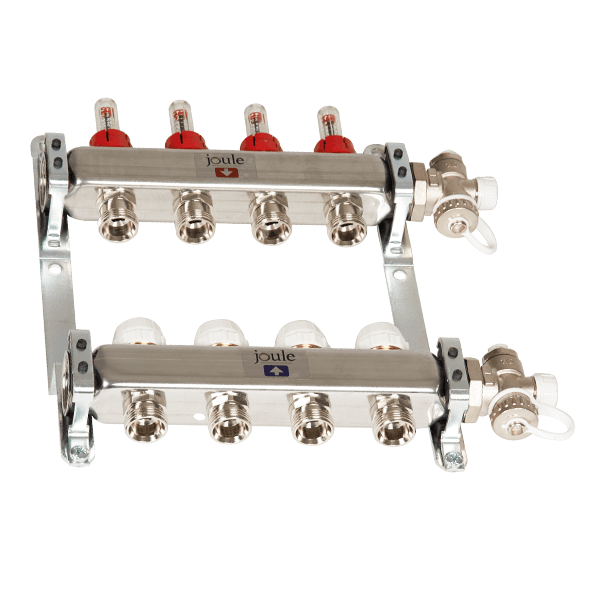

UFH Manifolds
The Manifold and Pumpset are at the heart of any underfloor heating system since they control the flow and distribution of water from the heat source (eg. boiler, heat pump) to each underfloor pipe circuit. Our manifolds can be supplied with a pump mixing valve, ball valves, drain valves, temperature, and pressure gauges.
There is also a balancing valve for each loop. Our manifolds are available for 2-13 underfloor heating circuit ports and are supplied with fully assembled fixing brackets. Each manifold is provided with 1” flow/return headers and is produced as a single unit from high quality stainless steel.
Manifold Dimensions & Specification Data
| Item No; | Item Description | Port No. | A (mm) | B (mm) |
| UZM-0000000-03 | UFH 3 CIRCUIT MANIFOLD | 3 | 193 | 337 |
| UZM-0000000-04 | UFH 4 CIRCUIT MANIFOLD | 4 | 243 | 387 |
| UZM-0000000-05 | UFH 5 CIRCUIT MANIFOLD | 5 | 293 | 436 |
| UZM-0000000-06 | UFH 6 CIRCUIT MANIFOLD | 6 | 343 | 487 |
| UZM-0000000-07 | UFH 7 CIRCUIT MANIFOLD | 7 | 393 | 537 |
| UZM-0000000-08 | UFH 8 CIRCUIT MANIFOLD | 8 | 443 | 587 |
| UZM-0000000-09 | UFH 9 CIRCUIT MANIFOLD | 9 | 493 | 637 |
| UZM-0000000-10 | UFH 10 CIRCUIT MANIFOLD | 10 | 543 | 687 |
| UZM-0000000-11 | UFH 11 CIRCUIT MANIFOLD | 11 | 593 | 737 |
| UZM-0000000-12 | UFH 12 CIRCUIT MANIFOLD | 12 | 643 | 787 |
| UZM-0000000-13 | UFH 13 CIRCUIT MANIFOLD | 13 | 693 | 832 |

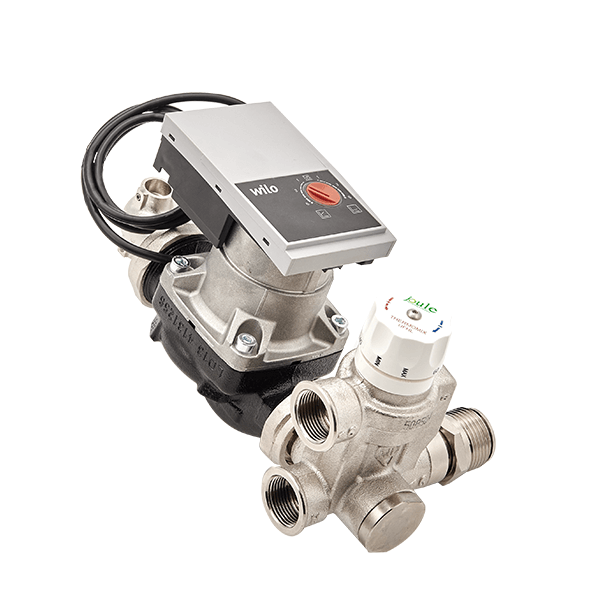

UFH Mixing Set
The Joule mixing set includes a blending valve, an ‘A’ rated energy efficient pump, and a temperature controller complete with a temperature sensor. The pack is suitable for use with floor areas of up to 250m2 or a maximum output of 20kW. Available in left and right hand configurations.
The Wilo pump sets have been specifically designed for installation with manifolds and their lightweight design makes them ideal for wall mounting. Featuring a fully ERP compliant, energy-efficient pump as well as a port for an automatic air vent, the Wilo pump set is the installer’s choice for fuel-efficient, reliable underfloor heating installations.
Wilo Circulation Pump Data
| Description | Para 15/130/7-50/SC |
| Threaded Pipe Union | Rp 1/2 |
| Thread | G1 |
| Overall length L0 | 130mm |
| Dimensions L1 | 65mm |
| Dimensions L2 | 94mm |
| Approx. Weight | 1.54kg |

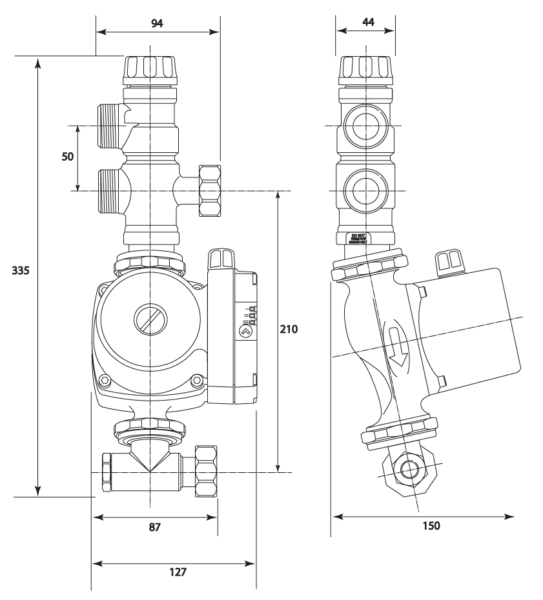

Joule Underfloor Heating Control Pack
The Joule underfloor heating control pack is a purpose built thermostatic control valve designed to mix flow and return water within an underfloor heating system to a stable, adjustable temperature. The control pack is pre-fabricated so it can “bolt on” to a manifold that has 210mm centres that can be used for a maximum pressure of 10Bar and has an adjustable control range from 25°C to 60°C.
With the Joule underfloor heating control pack pre-assembled in the correct orientation for installation offer up the control pack to the UFH manifold, ensuring that the flow and return bars on the manifold are the correct way around to match the control; The flow bar should be at the top and the return bar at the bottom
