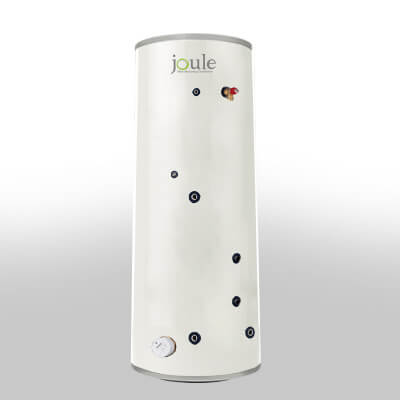

Wellmaster Indirect

Features & Benefits

Within our wellmaster hot water cylinders, a few key features are a single high recovery coil, a bevelled stat pocket for better fitting, pre plugged secondary tapping for ease of installation all concealed within a white with grey cap and bottom, for a premium appearance.

Single high recovery coil
Smooth tube coil construction for durability and performance
Compression connections fitted as standard
Bevelled stat pocket for better fitting
Metallic White wipe clean rigid case for a premium appearance
Pre plugged secondary tapping for ease of installation
All Connections clearly labelled
Butt Welded process used throughout
Robotically welded
Branded quality components

Categories: Unvented Cylinders

General

ITEM NO	CAP.	WEIGHT EMPTY	WEIGHT FULL	WATER VOL.	ERP RATING	REHEAT TIME INDIRECT	STANDING LOSS	STANDING LOSS	PRIMARY COIL RATING
	Litre	KG	KG	L		MINS	W	kWh/24h	KW
TCIWVI-0150LFC	150	34	187	148	B	32	55	1.32	16
TCIWVI-0193LFC	200	43	245	194	C	38	78	1.87	18
TCIWVI-0200NFC	200	41	243	194	C	38	78	1.87	18
TCIWVH-0250NEC	250	52	301	247	C	39	84	2.02	22
TCIWVI-0250NFC	250	49	299	247	C	39	87	2.09	22
TCIWVI-0300NFC	300	56	356	290	C	46	92	2.21	22
TCIWVI-0400LFC	400	62	462	390	C	34	102	2.45	40
TCIWVI-0500LFC	500	89	589	494	C	40	115	2.76	43

Videos

Downloads

DIMS

ITEM NO	HEIGHT	DIAMETER	COLD WATER INLET	PRIMARY COIL FLOW	PRIMARY COIL RETURN	AQUASTAT POCKET BOTTOM	T&P RELIEF VALVE	IMMERSION HEATER BOTTOM	SECONDARY RETURN
(mm)	A	B	C	D	E	F	G	H	I
TCIWVI-0150LFC	1085	500	196	545	196	341	911	205	780
TCIWVI-0193LFC	1085	560	218				883		848
TCIWVI-0200NFC	1085	560	218	598	218	423	883	228	768
TCIWVH-0250NEC	1815	540	218				1531		968
TCIWVI-0250NFC	1335	560	218	828	218	383	1133	228	968
TCIWVI-0300NFC	1535	560	218	828	218	383	1333	228	1153
TCIWVI-0400LFC	1535	660	225	975	225	405	1280	250	1180
TCIWVI-0500LFC	1880	660	225	1140	225	455	1640	250	1440

mechanical

electrical

kit contents

Item No;		Description
TZ9-4.0-0000.5		Temp and Pressure Relief Valve
TZ9-4.0-000.75		Temp and Pressure Relief Valve
TZC-Y-0000000Z		High Limit Cut Out Stat
TZC-D-000000Z		Dual Stat
TZU-000015X22		Tundish
TZM-I-00022MM		2 Zone Motorised Valve
TZG-3.0-0.75L		Inlet Control Group
TZG-3.0-0001L		Inlet Control Group
TV-P-000012L		Expansion Vessel
TV-P-000019L
TV-P-000024L
TV-P-000035L
TV-P-000050L
TI-I-L-14-3-1		Immersion Heater
