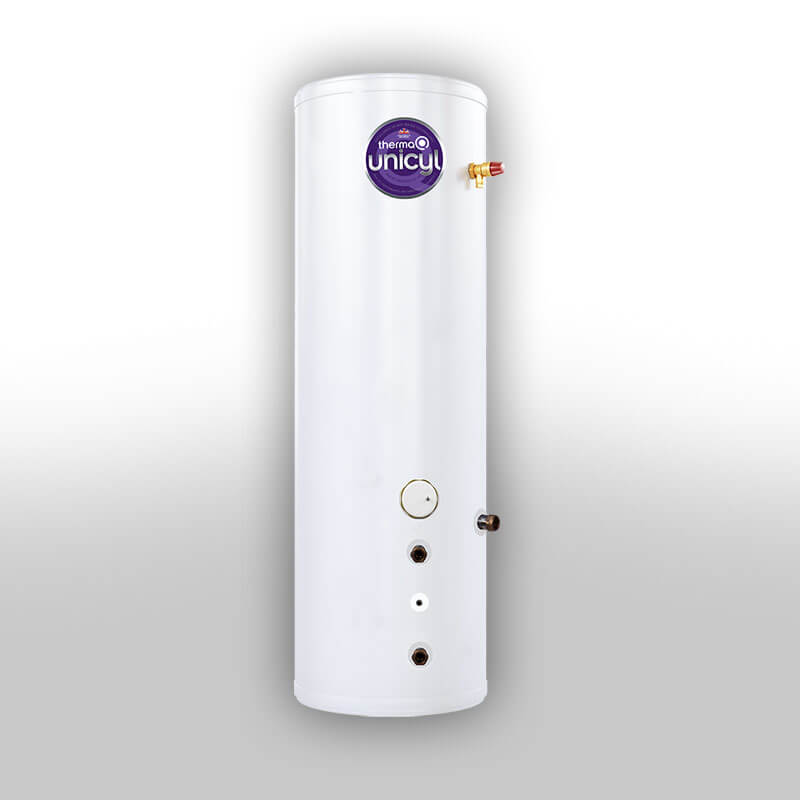

Therma Q Unicyl Indirect

Features & Benefits

ThermaQ Unicyl indirect unvented hot water cylinder is built using high-grade Duplex stainless steel. The Therma Q cylinder is manufactured to the highest standards and supplied with innovative components such as our ThermaQ thermostat.The Unicyl cylinder has quick recovery, low heat loss, and economic use of energy.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Factory pre built Gas or Oil Boiler Ready

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL WATER VOLUME ERP ENERGY RATING REHEAT TIME INDIRECT STANDING LOSS STANDING LOSS PRIMARY COIL RATING
LITRES KG KG L   MINS kWh/24h W KW
TTUMVI-0120LFB 120 30 146 120 B 19.05 1.11 46 15.63
TTUMVI-0150LFB 150 38 184 150 B 23.71 1.26 53 16.33
TTUMVI-0180LFB 180 42 218 180 B 29.20 1.40 58 15.9
TTUMVI-0210LFC 210 45 248 210 B 32.5 1.48 62 18.15
TTUMVI-0250LFC 250 51 296 250 C 38.83 1.76 73 17.8
TTUMVI-0300LFC 300 60 355 300 C 43.8 2.03 85 19.35
