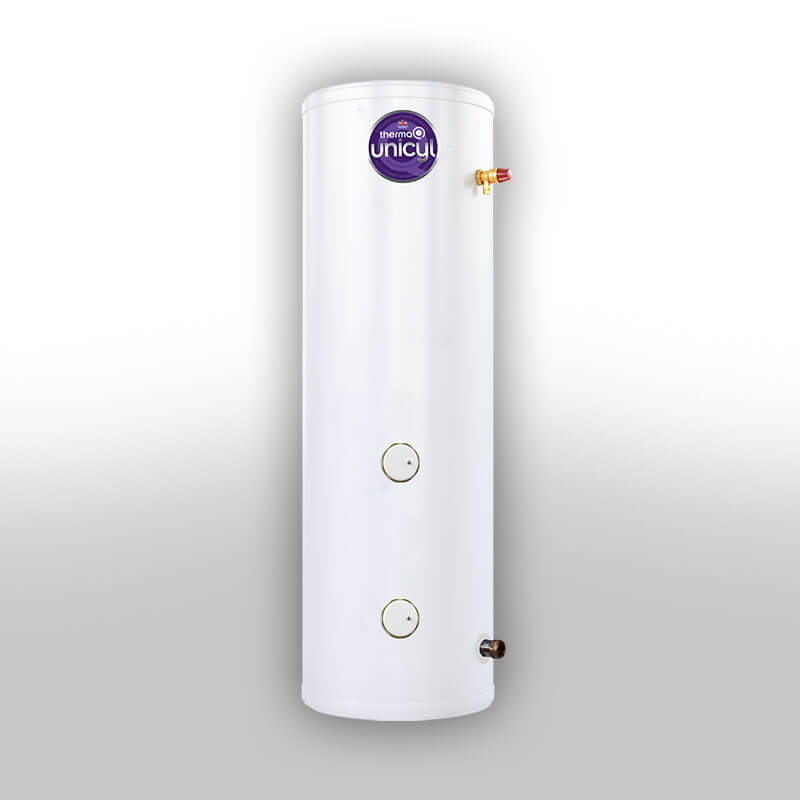

Therma Q Unicyl Direct

Features & Benefits

ThermaQ Unicyl cylinders is built using high-grade Duplex stainless steel and designed to provide fast flowing hot water to single or multiple outlets. Manufactured to the highest standards and supplied with innovative components to ensure quick recovery, low heat loss, and economic use of energy. Made from Duplex Stainless Steel. The Therma Q cylinder is insulated with 50mm 100% CFC and HCFC free polyurethane to minimise heat loss.

  • Manufactured from high grade Duplex stainless steel
  • Fitted with Branded Quality Components
  • Heated electrically with two factory fitted immersions

Categories: Unvented Cylinders

General
ITEM NO CAPACITY WEIGHT EMPTY WEIGHT FULL LOAD PROFILE WATER VOLUME ERP ENERGY RATING ENERGY EFFICIENCY  STANDING LOSS STANDING LOSS ANNUAL ENERGY USAGE
LITRE KG KG   L   nwh% MINS W kWh/24h
TTUMVD-0120LFB 120 26 146 M 120 C 34 1.11 46 1515
TTUMVD-0150LFB 150 33 183 L 150 C 33 1.26 53 1547
TTUMVD-0180LFB 180 38 218 L 180 C 36 1.40 58 2852
TTUMVD-0210LFC 210 41 251 L 210 C 36 1.48 62 2862
TTUMVD-0250LFC 250 46 296 XL 250 C 35 1.76 73 2920
TTUMVD-0300LFC 300 55 355 XL 300 C 35 2.03 85 2920
