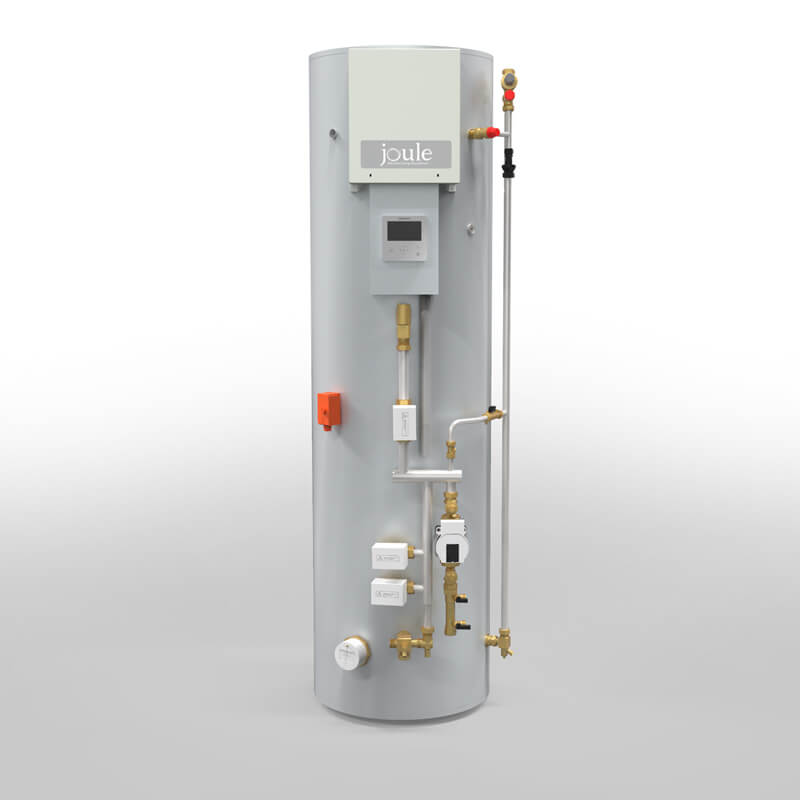

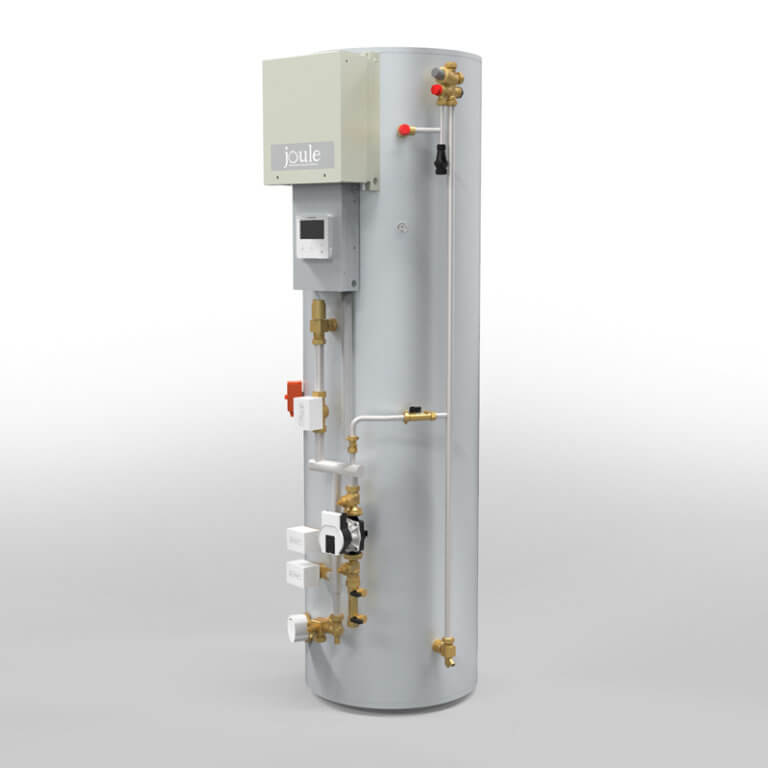

Standard Pre-Plumb Cylinder

Features & Benefits

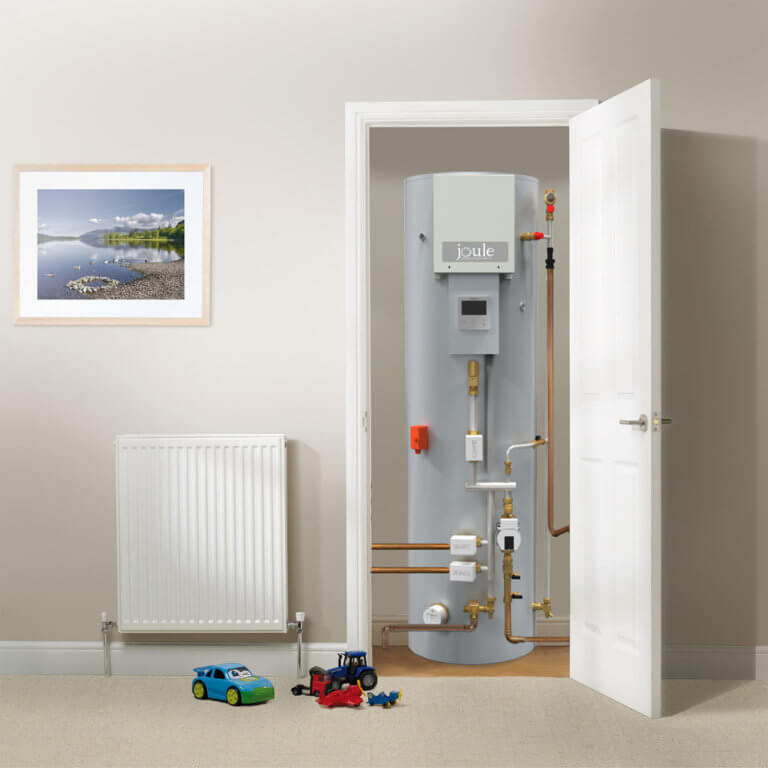

Joule hot water cylinders are the next generation of pre-plumbed hot water solutions. With its sleek design and pre-plumbed architecture, the space requirements for the pre-plumbed hot water cylinder have been reduced dramatically. Joule unvented hot water cylinders can be used in conjunction with our air source heat pumps or any standard air source heat pumps on the market.

Categories:

General
 Cylinder

HUGH-G6150-L3C

HUGH-G6170-L3C

HUGH-G6200-L3C

HUGH-G6250-N3C

HUGH-G6300-N3C

 Nominal Hot Water Volumes (Ltr) 150L 170L 200L 250L 300L
 ErP Rating C C C C C
 Heat Up Times – Coils (MINS) 55 66 81 89 92
 Standing Loss 10 10 11 14 17
Water

Primary Circuit Pump

Wilo – Yonos PARA RS 15/7.0 iPWM1 130 12

Heating Circuit Pump

Connection Size (mm) Heating / DHW

22/22
Water Safety

Water Circuit

Control Thermistor (°C)

80
DHW Cylinder

DHW Expansion Vessel (Litres)

18 18 18 18 24

Control Thermistor (°C)

75

Over Temperature Cut-Out (°C)

80 ± 5

Temp and Pressure Relief Valve (°C) / (MPa (Bar))

90 / 0.7 (7)

Expansion Relief Valve (Cold) (MPa (Bar))

0.6 (6)

Weight Empty / Full (kg) 46/196 54/223 58/256 67/316 74/372
Cylinder Material Cylinder Cylinder Material

Stainless Steel Duplex LDX 2101

Insulation

Insulation Type

Polyurethane foam CFC-Free and HCFC Free

Insulation Thickness (mm) 50
GWP of Insulation 3.1
ODP of Insulation 0
Electrical Data Electrical Supply

220-240v, 50Hz

Phase SINGLE

Fuse Rating – MCB Sizes (A)*1

16

Immersion Capacity (kW)

3

Max Running Current (A)

13

Fuse Rating – MCB Sizes (A)*1

16
