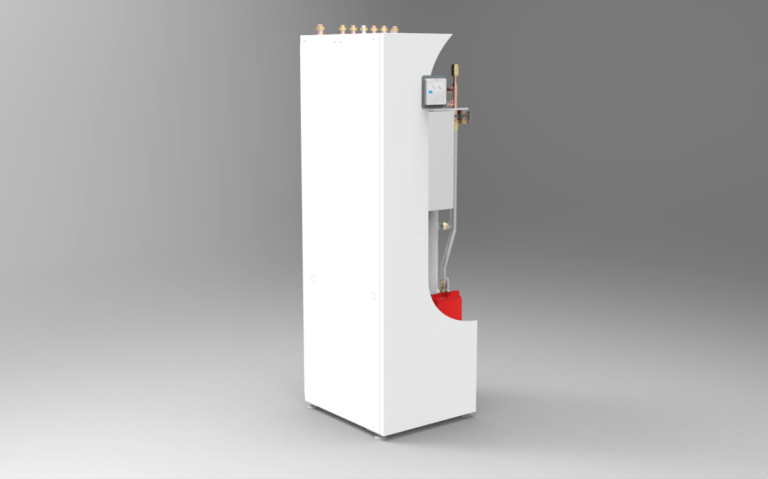

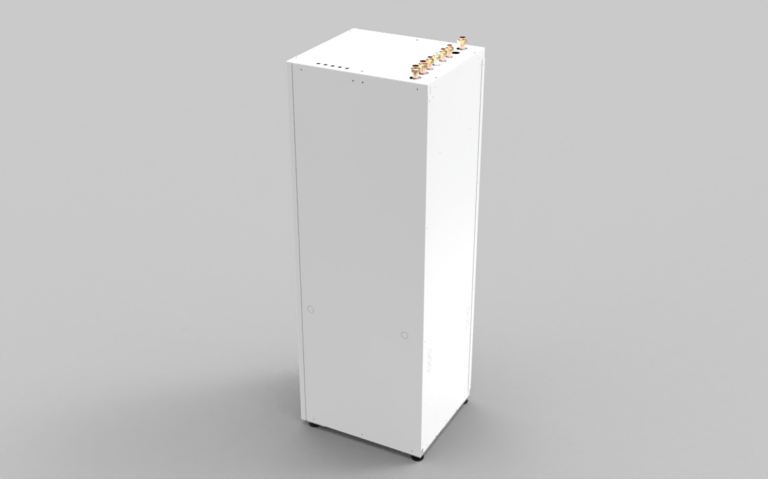

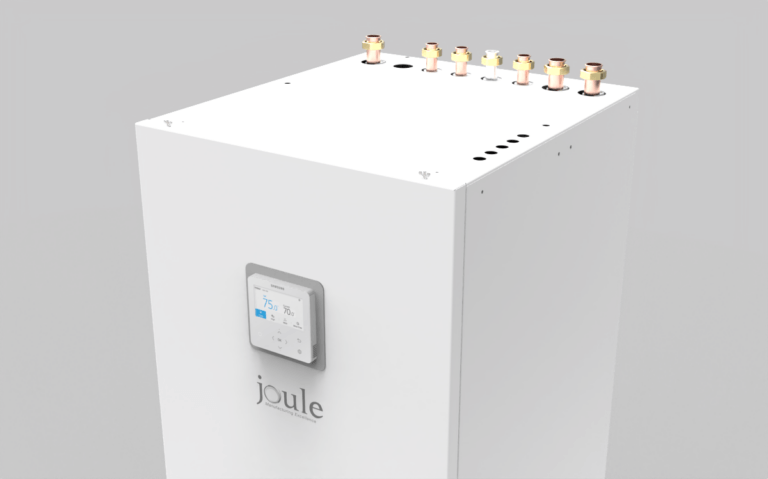

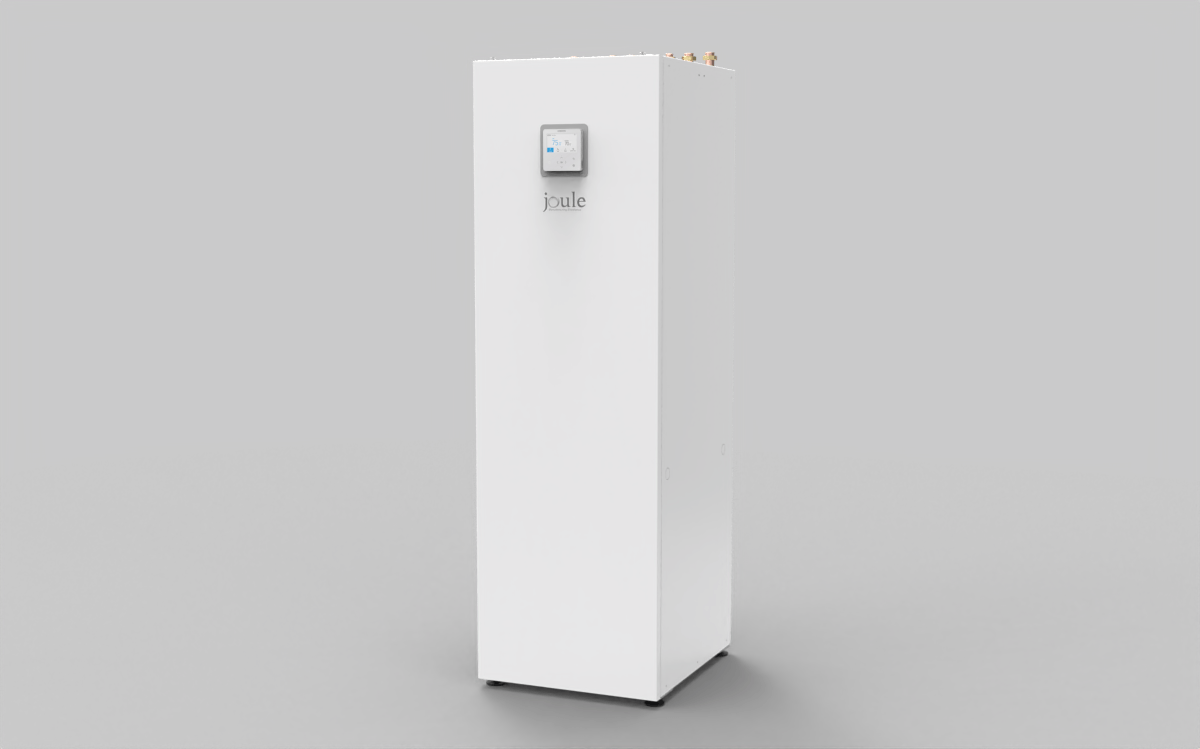

Smart Plumb Pre-plumb Compact

Features & Benefits

The new and innovative Smart Plumb Compact has been designed to not only look modern and minimise footprint for homeowners but also has been designed to benefit installers.

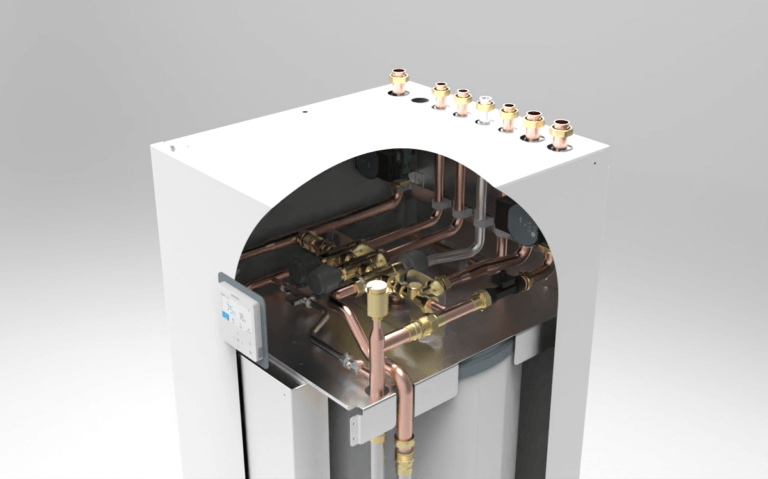

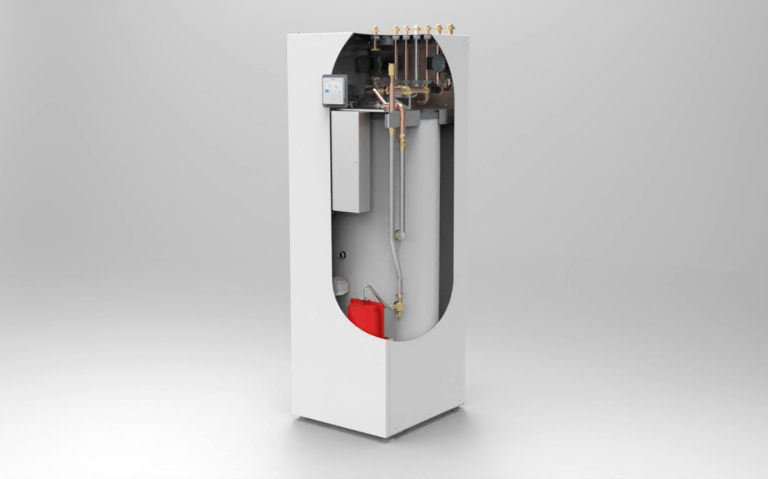

Having all main components easily accessible proves maintenance simple, as well as strategically assigning all valves to be part of one unit concludes everything being in a single place logically makes the job at hand simple, less time consuming, and cost-effective.

Categories:

General
 Cylinder

HUGH-180COM-3C

HUGH-230COM-3C

 Nominal Hot Water Volumes (Ltr) 180L 230L
 ErP Rating C C
Water

Primary Circuit Pump

Wilo – Yonos PARA RS 15/7.0 PUMP 130 12

Sanitary Hot Water Pump

Connection Size (mm) Heating / DHW

22&28mm
Water Safety

Water Circuit

Control Thermistor (°C)

Flow sensor (minimum flow 7L/min)

Supplied
DHW Cylinder

Control Thermistor (°C)

Temp and Pressure Relief Valve (°C) / (MPa (Bar))

90/ 0.7 (7)

Weight Empty / Full (kg) 85 / 265 90 / 320
Electrical Data Electrical Supply

220-240v, 50Hz

Phase SINGLE

Fuse Rating – MCB Sizes (A)*1

16

Immersion Capacity (kW)

3

Max Running Current (A)

13

Fuse Rating – MCB Sizes (A)*1

16
