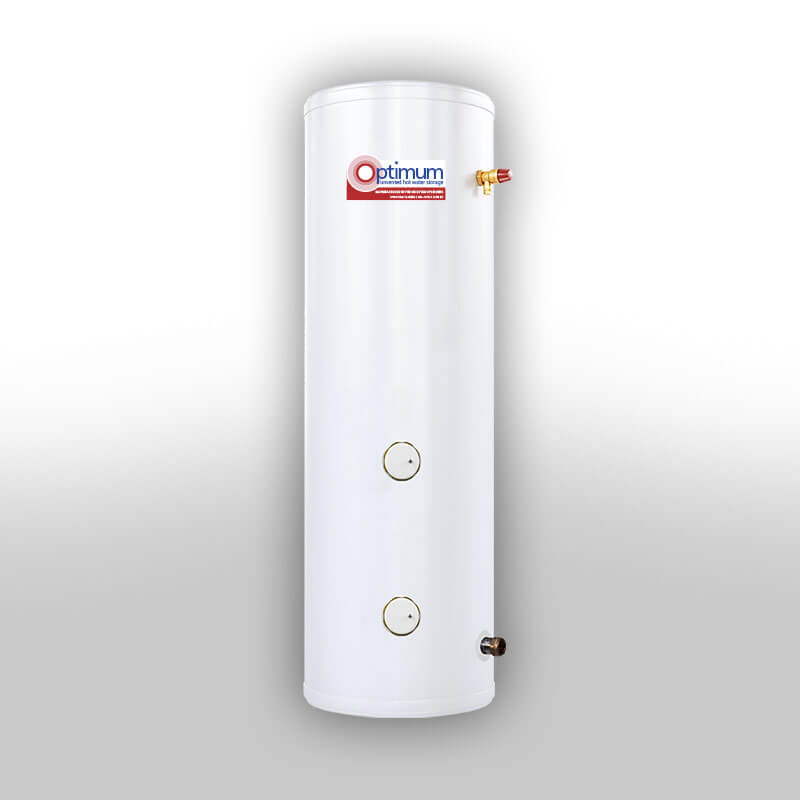

RM Cylinders Optimum Direct

Features & Benefits

RM Cylinders Optimum unvented hot water cylinder is built using high-grade Duplex stainless steel and designed to provide fast flowing hot water to single or multiple outlets. The RM direct hot water cylinder is manufactured to the highest standards and supplied with quality components to ensure quick recovery, low heat loss, and economic use of energy. Made from Duplex Stainless Steel. The hot water cylinder is insulated with 50mm 100% CFC and HCFC free polyurethane to minimise heat loss and powered by two electric immersion heaters.

Manufactured from high grade Duplex stainless steel
Fitted with Branded Quality Components
Heated electrically with two factory fitted immersions

Categories: Unvented Cylinders

Download Manual

General

ITEM NO	CAPACITY	WEIGHT EMPTY	WEIGHT FULL	LOAD PROFILE	WATER VOLUME	ERP ENERGY RATING	ENERGY EFFICIENCY	STANDING LOSS	STANDING LOSS	ANNUAL ENERGY USAGE
	LITRE	KG	KG		L		nwh%	khw/24h	W	kWh/24h
TROMVD-0090LFC	90	21	111	M	90	C		1.25	52	1884
TROMVD-0120LFB	120	26	146	M	120	C		1.44	60	1911
TROMVD-0150LFB	150	33	183	M	150	C		1.64	68	1845
TROMVD-0180LFB	180	38	218	L	180	C		1.82	76	3432
TROMVD-0210LFC	210	41	251	L	210	C		1.92	80	3680
TROMVD-0250LFC	250	46	296	XL	250	C		2.19	91	6015
TROMVD-0300LFC	300	55	355	XL	300	C		2.24	93	6087

Videos

Downloads

DIMS

ITEM NO	HEIGHT	DIAMETER	COLD WATER INLET	T&P RELIEF VALVE	IMMERSION HEATER BOTTOM	IMMERSION HEATER TOP
(mm)	A	B	C	G	I	J
TROMVD-0090LFC	760	545	195	515	242
TROMVD-0120LFB	940	545	195	703	242	519
TROMVD-0150LFB	1140	545	195	890	242	619
TROMVD-0180LFB	1320	545	195	1078	242	719
TROMVD-0210LFC	1510	545	195	1266	242	819
TROMVD-0250LFC	1760	545	195	1516	242	959
TROMVD-0300LFC	1980	545	195	1829	242	1109

Electrical

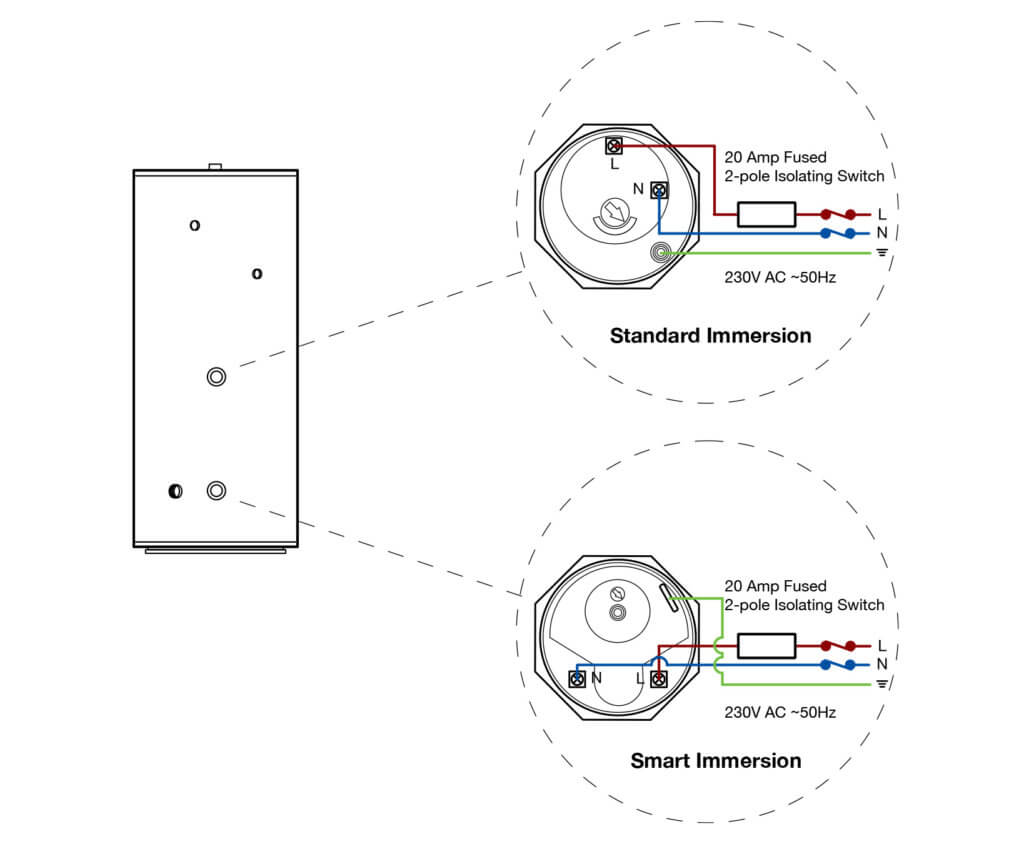

Fitting The Immersion Heater

Always check the immersion for signs of leakage before wiring commences.
The immersion heater must be completely submerged in water with a minimum of 200mm of water
above the top of the immersion.

Wire the immersion through a double pole fused spur. The contact separation must be no less than
3mm with a minimum breaking capacity of 16A.

KIT CONTENTS
