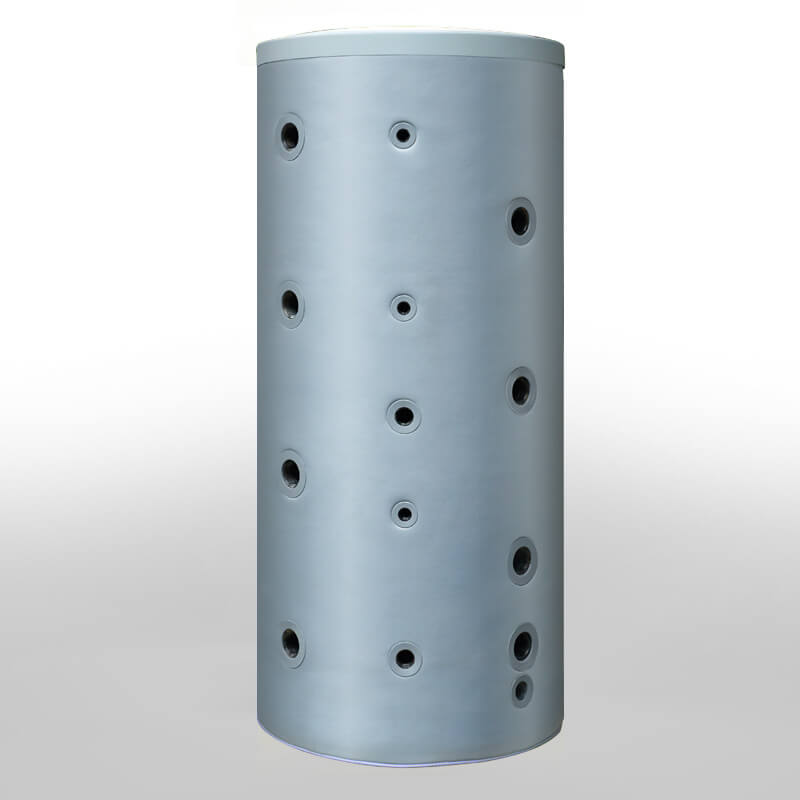

Mild Steel Buffer Tanks

Features & Benefits

Joule manufactures a large range of stainless & mild steel buffer tanks with different coil configurations. The largest capacity stainless steel buffer tank is 3,000 litres and up to 20,000 litres for mild steel. Joule buffer tanks can come complete with numerous coil configurations from direct to quad coil and all in-between. The coil types available are pumped high temperature, heat pump, gravity and solar.

Joule buffer tanks are compatible with air and ground source heat pumps and are ideal for use with bio mass and solid fuel heating systems and are a great heat store for electrically generated energy.

Categories: Commercial Cylinders

General
Item No. Item No Capacity Weight (Empty) Water Volume ErP Rating Max Working Pressure Max Working Temp
With Coil Without Coil L kg L oC
– BBMSD-00100NFC 100 50 111 C 0.3 95
BBMSI-00200NFC BBMSD- 00200NFC 200 60 223 C 0.3 95
BBMSI-00300NFC BBMSD-00300NFC 300 75 305 C 0.3 95
BBMSI-00400NFC BBMSD-00400NFC 400 90 387 C 0.3 95
BBMSI-00500NFC BBMSD-00500NFC 500 105 467 C 0.3 95
BBMSI-00800NFC BBMSD-00800NFC 800 125 728 C 0.3 95
BBMSI-01000NFC BBMSD-01000NFC 1000 150 883 C 0.3 95
BBMSI-01500NFC BBMSD-01500NFC 1500 210 1479 C 0.3 95
BBMSI-02000NFC BBMSD-02000NFC 2000 235 2023 C 0.3 95
BBMSI-03000NFC BBMSD-03000NFC 3000 300 2935 C 0.3 95
BBMSI-04000NFC BBMSD-04000NFC 4000 380 3985 C 0.3 95
BBMSI-05000NFC BBMSD-05000NFC 5000 440 4981 C 0.3 95
