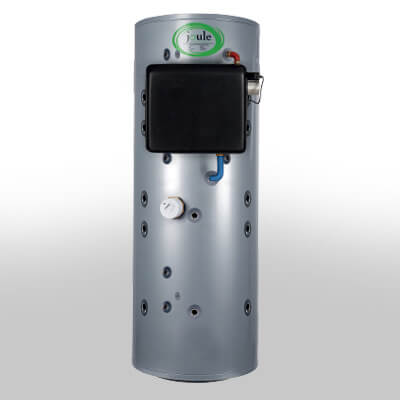

Joule Cyclone Thermal Store 2.0

Features & Benefits

The Joule Cyclone Thermal Store 2.0 is the ideal solution for multi-energy applications. The hot water is produced through the freshwater module mounted on the front of the tank.
This provides far superior flow rates compared with the older internal coil version. The tank has many direct connections to allow for multiple heat sources and heat zones. The tank is manufactured from stainless steel and has the usual quality the outer casing that you expect from a Joule Cyclone cylinder.

3kW Incoloy immersions fitted as standard. Solar coil option available. Female connections throughout. Bevelled stat pocket for better fitting. Metallic grey wipe clean rigid case for a premium appearance. Ideal multi-energy tank solution. 1” direct connections. Butt Welded process used throughout and robotically welded. Branded quality components used throughout. Multiple system schematics available in the installation manual.

Categories: Unvented Cylinders

General

	Standard			Solar
Capacity	250L	300L	500L	200L	250L	300L	400L	500L
Item No;	KCZMVI- 0250LFC	KCZMVI- 0300LFC	KCZMVI- 0500LFC	KCZMVS- 0200LFC	KCZMVS- 0250LFC	KCZMVS- 0300LFC	KCZMVS- 0400LFC	KCZMVS- 0500LFC
Height (A)	1400	1600	1900	1490	1400	1600	1570	1900
Diameter (B)	600	600	710	540	600	600	710	710
Weight (empty)	56	64	87	46	56	64	71	87
Weight (full)	302	360	589	243	302	360	471	589
Hot water volume	247	290	494	193	244	287	387	492
C	218	213	225	196	218	213	225	225
D	318	313	325	486	468	518	530	630
E	418	413	425	526	468	563	575	675
F	508	643	765	586	568	618	630	730
G	653	653	815	576	508	643	655	765
H	789	908	1154	606	558	653	655	815
I	889	1008	1254	821	789	908	920	1154
J	1128	1323	1635	921	889	1008	1020	1254
K	–	–	–	1206	1128	1323	1275	1635
Energy Efficiency Class	C	C	C	C	C	C	C	C
Standing Loss (W)	87	92	115	83	89	96	102	115

Videos

Downloads

Dims

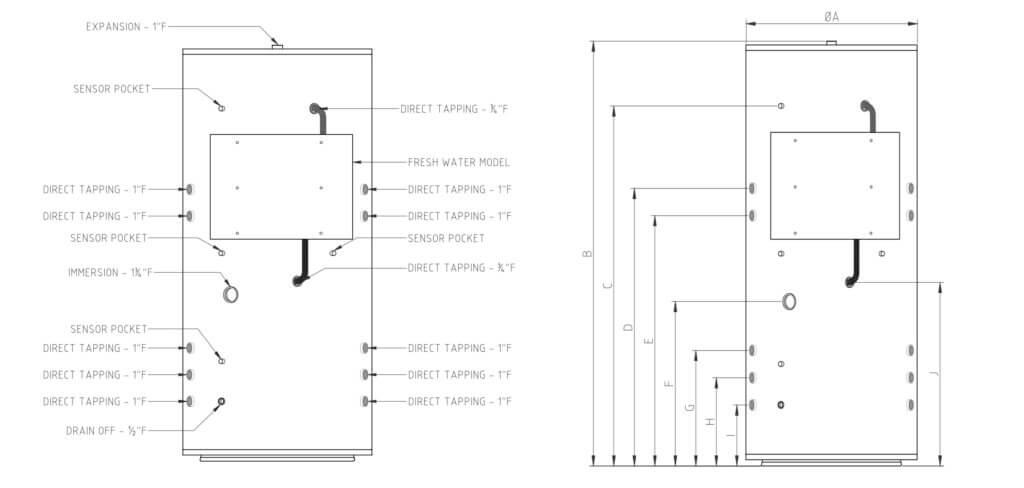

Standard Dimensions	200L	250L	300L	400L	500L
A (mm)	530	600	600	710	710
B (mm)	1490	1400	1600	1570	1900
C (mm)	1206	1128	1328	1285	1635
D (mm)	921	889	1013	1020	1254
E (mm)	821	789	913	920	1154
F (mm)	576	588	648	655	765
G (mm)	396	418	413	425	425
H (mm)	296	318	313	325	325
I (mm)	196	218	213	225	225
J (mm)	606	653	653	655	815

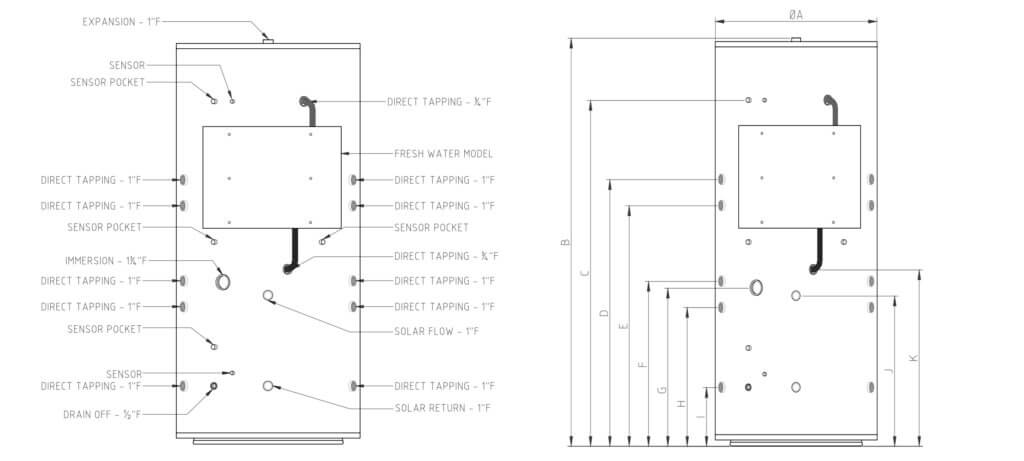

Solar Dimensions	200L	250L	300L	400L	500L
A (mm)	530	600	600	710	710
B (mm)	1490	1400	1600	1570	1900
C (mm)	1206	1128	1328	1285	1635
D (mm)	921	889	1013	1020	1254
E (mm)	821	789	913	920	1154
F (mm)	576	588	648	655	765
G (mm)	586	568	618	630	730
H (mm)	486	468	518	530	630
I (mm)	196	218	213	225	225
J (mm)	526	468	563	575	675
K (mm)	606	558	653	655	815

mechanical

electrical

kit contents

Item No;		Description
TZ9-4.0-0000.5		Temp and Pressure Relief Valve
TZ9-4.0-000.75		Temp and Pressure Relief Valve
TZC-Y-0000000Z		High Limit Cut Out Stat
TZC-D-000000Z		Dual Stat
TZU-000015X22		Tundish
TZM-I-00022MM		2 Zone Motorised Valve
TZG-3.0-0.75L		Inlet Control Group
TZG-3.0-0001L		Inlet Control Group
TV-P-000012L		Expansion Vessel
TV-P-000019L
TV-P-000024L
TV-P-000035L
TV-P-000050L
TI-I-L-14-3-1		Immersion Heater
