Cased Compact Heat Pump Package

Standard Pre Plumb by Joule

The new and innovative Smart Plumb Compact has been designed to not only look modern and minimise footprint for homeowners, but it also has been designed to benefit installers.

Having all main components easily accessible proves maintenance simple, as well as strategically assigning all valves to be part of one unit concludes everything being in a single place logically makes the job at hand simple, less time consuming, and cost-effective.

Get To Know Your Wiring

Connecting External Controls: Connection of external controls to the SmartPlumb Compact unit are made directly to the ‘Joule Kodiak PCB’ which is located inside the metal electrical enclosure. There is a dedicated 230V AC supply to power the external controls. These terminals are labelled ‘External Controls Power’ , specifically ‘L, N & E’ on the Joule PCB.

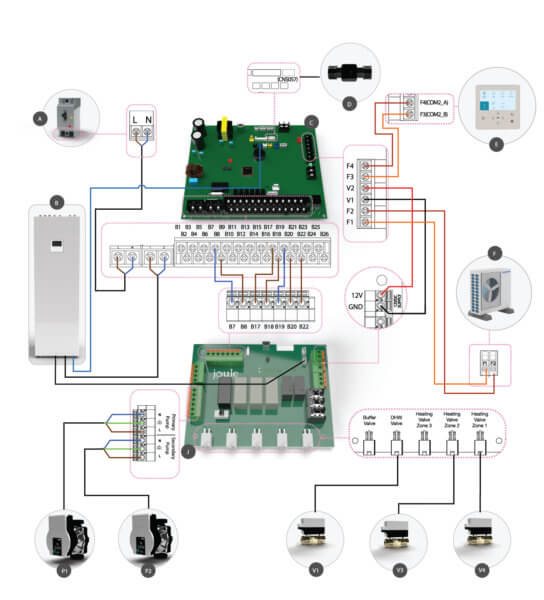

The switched live input from the external controls should be connected to the terminals labelled ‘Zone 1’ SIL, ‘Zone 2’ S/L and ‘Zone 3’ SIL on the Joule PCB, as detailed in the image below.

Wifi Controls - Smart Connectivity

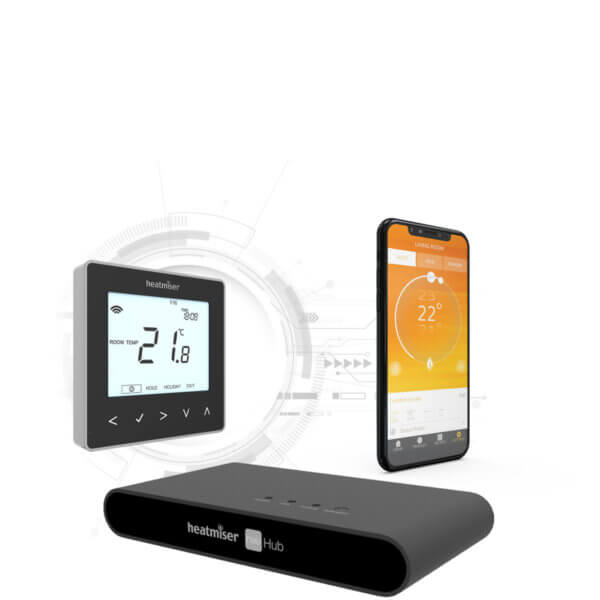

The neoStat was designed as a standalone room thermostat that can be paired to the neoHub for remote app control if desired by the end-user.

  • The intuitive menu navigation ensures Heatmiser Neo is a simple and highly flexible system.
  • The neoStat Digital Room Thermostat is designed to be discreet and with dimensions similar to a light switch, the neoStat will be noticed for its features, not size.
  • Smart Profiles enable users to program time and temperature settings and then apply them to a number of zones.
  • The Mesh Networking feature of Neo greatly increases the communication distance of the system as the communication data is automatically routed between the connected neoStats and the neoHub.
  • Automatically turning the heating off when the homeowner leaves and back on when they return, the GeoLocation feature is an ideal energy-saving feature.

Cylinder Pack Sizing Guide

Compact Unit
House Size m² Heatpump KW (kw) Cylinder Capacity (L) Item No.
0 – 110 5 180 HXSM-G6-011
110 – 155 8 180 HXSM-G6-012
155 – 245 12 230 HXSM-G6-133
245 – 315 16 230 HXSM-G6-134

Whats Included

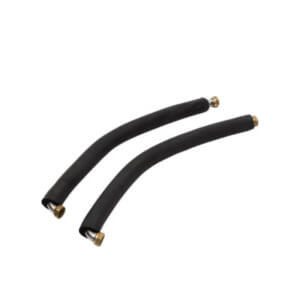

Flexi Conn Hoses

HZK-0H28-0.075

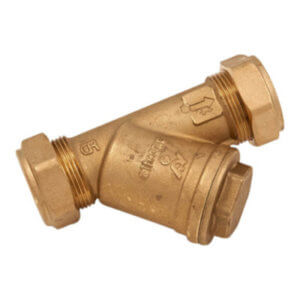

Y Strainer

HZK-0Y-000001F

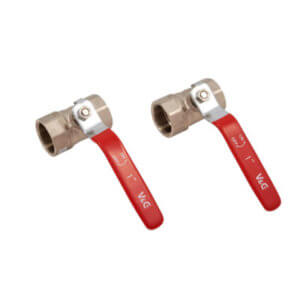

Isolation Valves

HZK-0V-0000028

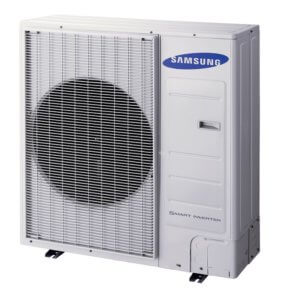

Outdoor Unit

Cylinder Pack Sizing Guide

Cased Internal Unit
House Size m² Year of Construction No. of Bedrooms Item No.
10 – 50 > 2019 1
50 – 80 > 2019 2
80 – 120 > 2019 3
120 – 220 > 2019 4
