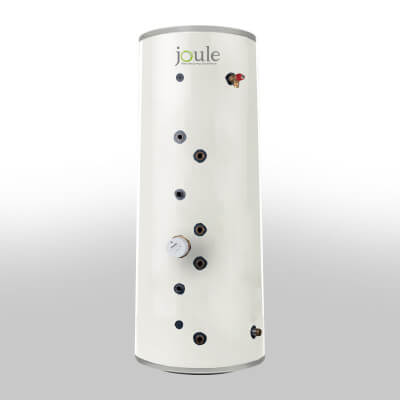

Wellmaster Solar Twin Coil

Features & Benefits

Our Wellmaster range of hot water cylinders has been designed to work with any solar system. The twin solar cylinders are manufactured with 9mm sensor pockets for the solar controller to ensure that the solar system performs at its optimum level.

Boiler and Solar high recovery coil.
Smooth tube coil construction for durability and performance.
Compression connections fitted as standard.
Beveled stat pocket for better fitting.
9mm Solar stat pockets for PT1000 solar probes.
White and grey wipe clean rigid case for a premium appearance.
Pre plugged secondary tapping for ease of installation.
All Connections clearly labeled. Butt Welded process used throughout and robotically welded.
Branded quality components used throughout.

Categories: Unvented Cylinders

General

ITEM NO	CAPACITY	WEIGHT EMPTY	WEIGHT FULL	WATER VOL	ERP RATING	ENERGY EFFICIENCY	REHEAT TIME INDIRECT	STANDING LOSS	STANDING LOSS	PRIMARY COIL RATING	SOLAR COIL RATING
	LITRE	KG	KG	L		nwh%	MINS	W	kWh/24h	KW	KW
TCIWVS-0200NFC	200	75	275	196	C	35	21	83	1.99	16	16
TCIMVD-0125LFC	400	110	510	402	C	37	37	102	2.45	16	22
TCIMVD-0125LFC	500	147	647	492	C	37	45	115	2.76	16	22

Videos

Downloads

DIMS

ITEM NO	HEIGHT	DIAMETER	COLD WATER INLET	PRIMARY COIL FLOW	PRIMARY COIL RETURN	AQUASTAT POCKET BOTTOM	AQUASTAT POCKET TOP	T&P RELIEF VALVE	IMMERSION HEATER BOTTOM	SECONDARY RETURN	SOLAR COIL FLOW	SOLAR COIL RETURN	SOLAR SENSOR BOTTOM	SOLAR SENSOR TOP
(mm)	A	B	C	D	E	F	P	G	I	K	L	M	N	O
TCIWVS-0200NFC	1085	560	218	768	598	688		883	533	848	468	218	268	883
TCIMVD-0125LFC	1535	660	225	1130	745	888		1280	680	1180	615	225	275	1280
TCIMVD-0125LFC	1880	660	225	1130	745	888		1640	680	1440	615	225	275	1640

MECHANICAL

ELECTRICAL

KIT CONTENTS

Item No;		Description
TZ9-4.0-0000.5		Temp and Pressure Relief Valve
TZ9-4.0-000.75		Temp and Pressure Relief Valve
TZC-Y-0000000Z		High Limit Cut Out Stat
TZC-D-000000Z		Dual Stat
TZU-000015X22		Tundish
TZM-I-00022MM		2 Zone Motorised Valve
TZG-3.0-0.75L		Inlet Control Group
TZG-3.0-0001L		Inlet Control Group
TV-P-000012L		Expansion Vessel
TV-P-000019L
TV-P-000024L
TV-P-000035L
TV-P-000050L
TI-I-L-14-3-1		Immersion Heater
